UC350 Series IP PBX (UC350 / UC350 Pro)

Based on a powerful hardware platform, the UC350 Series IP PBX includes the UC350 and UC350 Pro models. The UC350 supports 1,000 extensions and 120 concurrent calls, while the UC350 Pro supports 5,000 extensions and 500 concurrent calls. They integrate voice, video, paging, fax, conference, and recording functions. Each unit provides four modular slots that can accommodate E1/T1, FXS, FXO, and FXU boards via hot-plugging, enabling flexible configuration to build telephony systems for large and medium enterprises, branch offices, and government agencies. With an open API, users can easily integrate the phone system with third-party CRM and hotel management platforms.

• Key Features and Benefits:

  • Scalable Capacity: Supports 1,000 to 5,000 SIP users and 120 to 500 concurrent calls.

  • Hot-Swappable Modular Slots: Features 4 user board slots supporting E1/T1, FXS, FXO, and hybrid FXU boards with hot-plug capability and power failure lifeline support.

  • Distributed CPU Architecture: Powered by a distributed multi-core CPU that significantly improves call processing capacity.

  • Rich PBX Services: Includes multi-level IVR, voicemail, voice recording, 3-way conferencing, flexible dial rules, and user-friendly web management interfaces.

• Technical & Physical Specifications:

  • Hardware Interfaces:

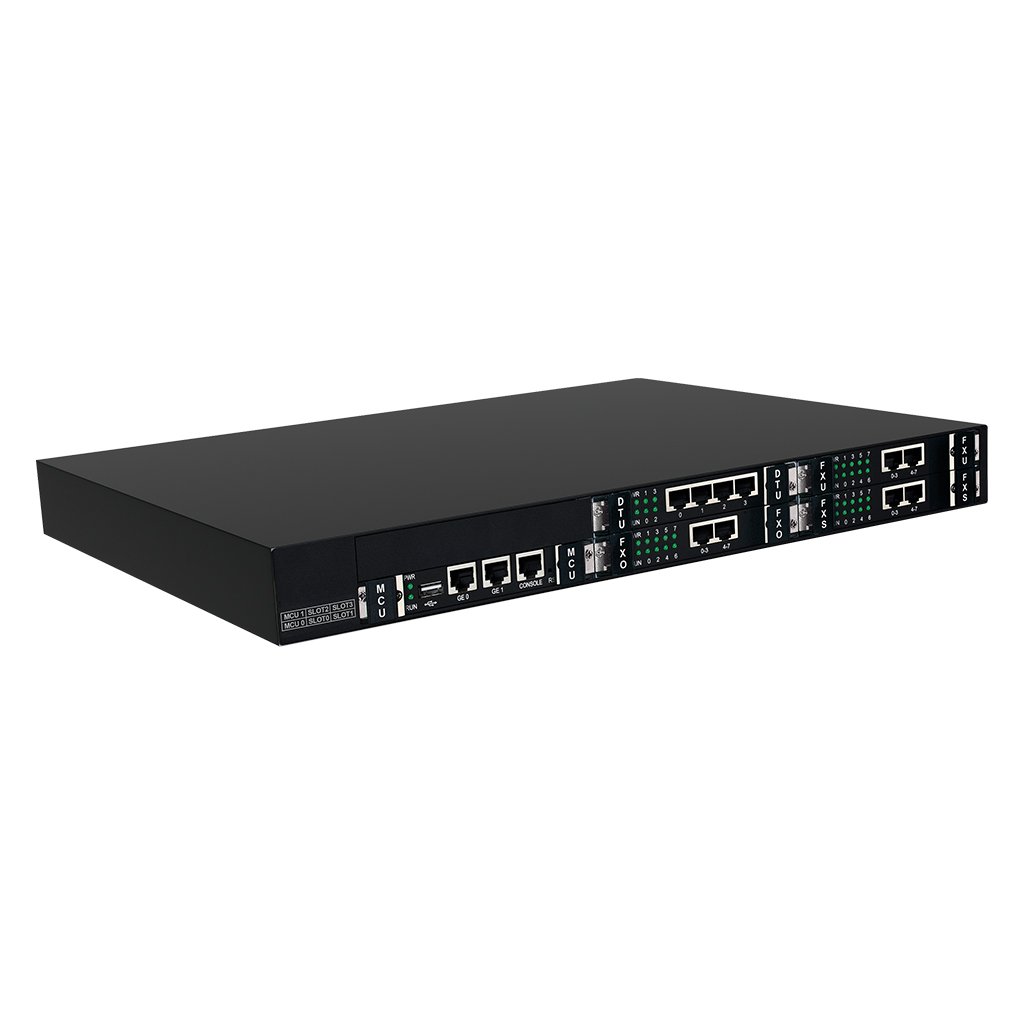

    • UC350: 2 Gigabit Ethernet ports, 1 x USB 2.0, 1 x Console port (RJ45), and 4 user board slots.

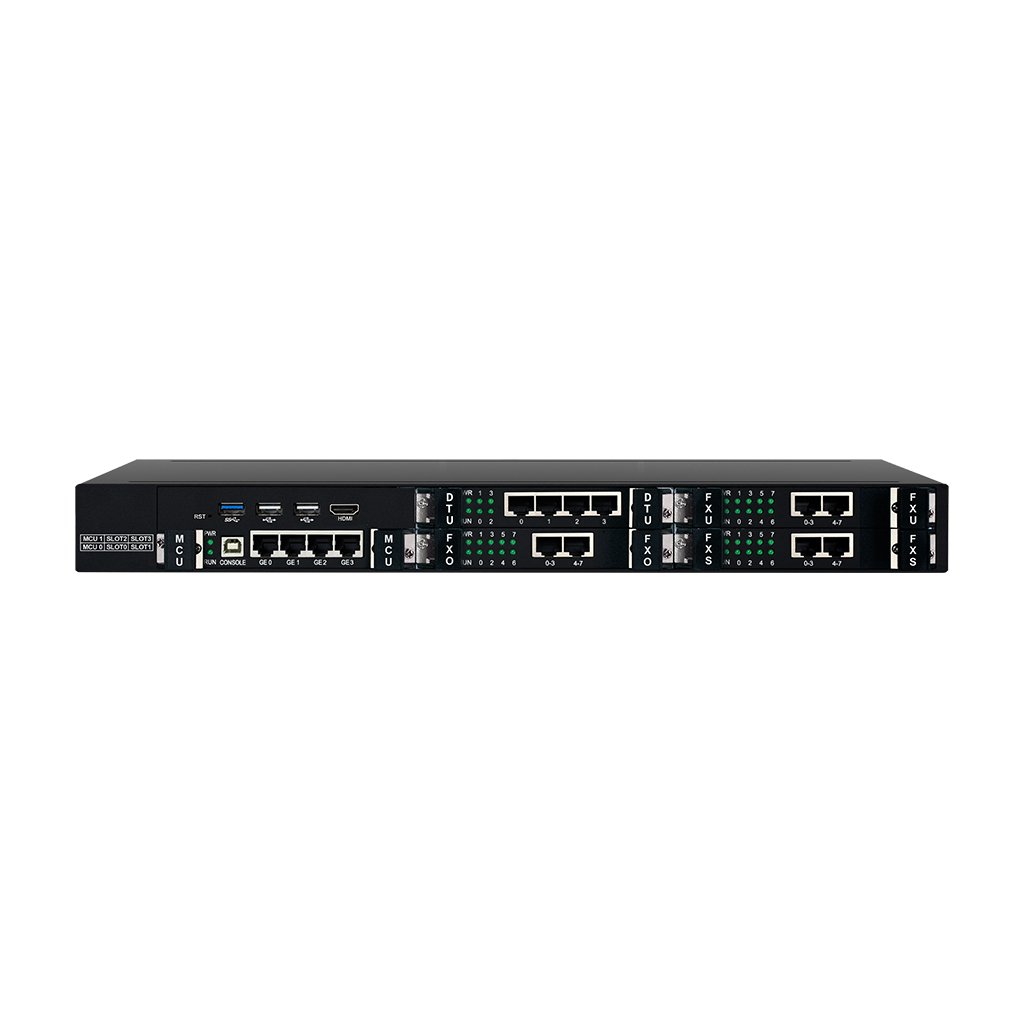

    • UC350 Pro: 4 Gigabit Ethernet ports, 2 x USB 2.0, 1 x USB 3.0, 1 x Console port (USB-B), and 4 user board slots.

  • Board Options: FXS Board (8 ports), FXO Board (8 ports), FXU Board (4 FXS and 4 FXO ports), and DTU Board (4 E1/T1 ports).

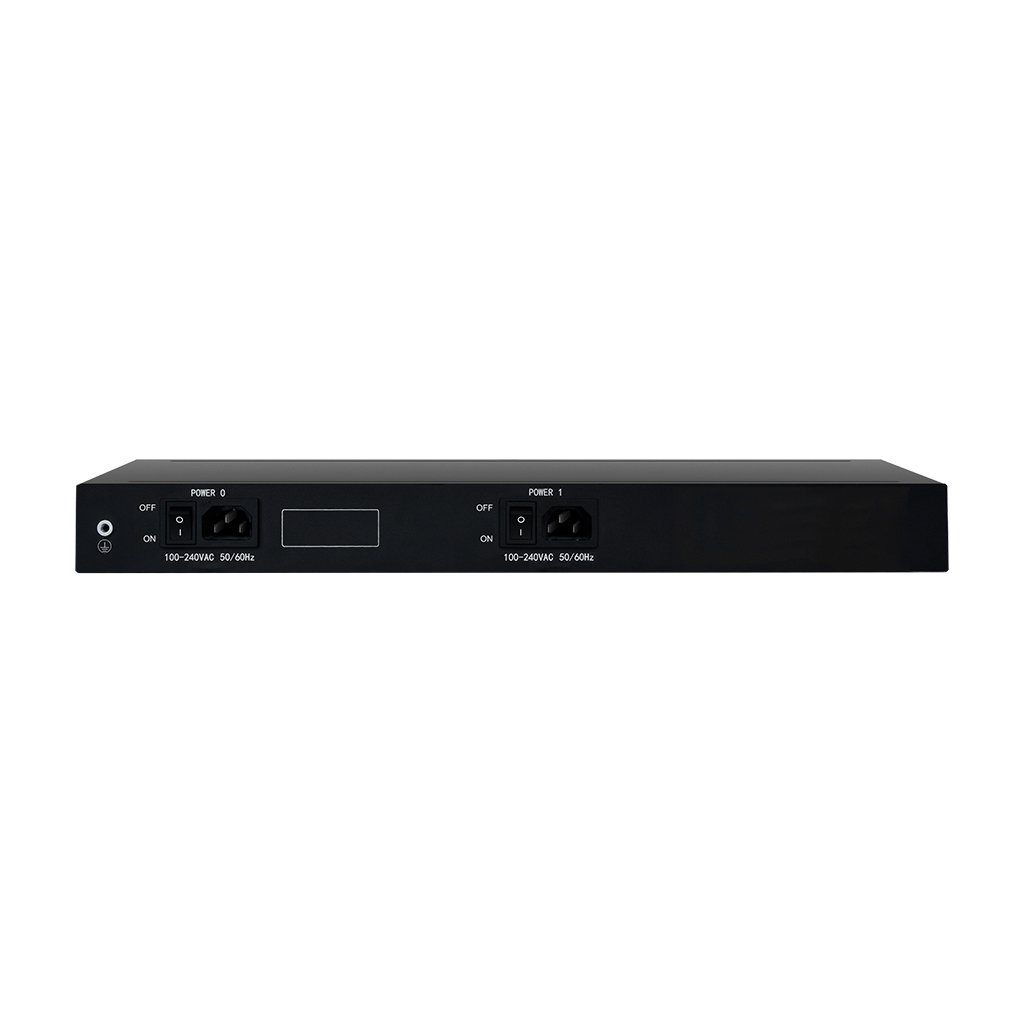

  • Power Supply & Consumption: 1+1 redundant power supply (100-240 VAC, 50/60 Hz); power consumption is 50W for UC350 and 55W for UC350 Pro.

  • Dimensions & Weight: Dimensions (W/D/H) of 43734549mm for both models; weight is 5.7kg (UC350) and 5.6kg (UC350 Pro).

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
