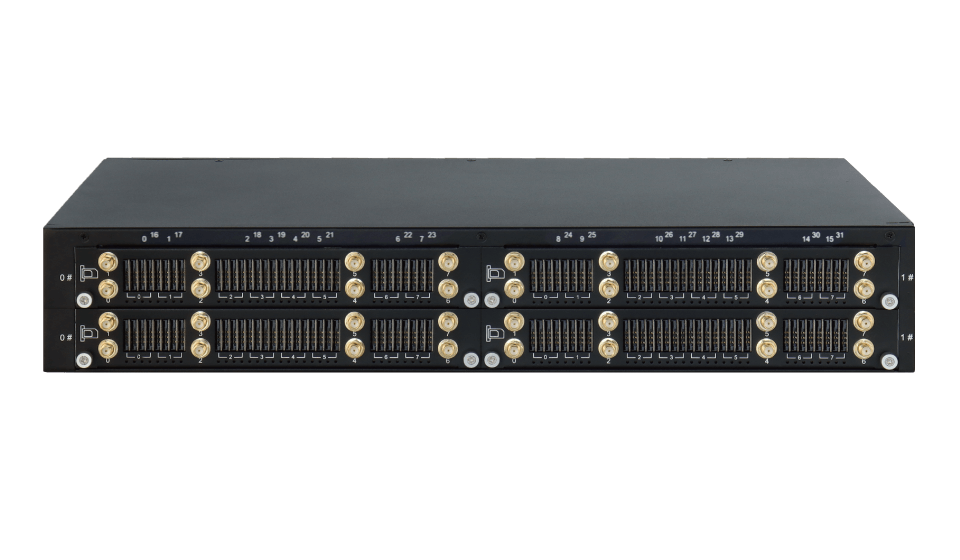

UC2000-VG Multi-SIM GSM&3G&LTE VoIP Gateway

The Dinstar UC2000-VG GSM/WCDMA/LTE VoIP Gateway is a multi-functional product used to effectively implement the smooth transition between PLMN (Mobile) and VoIP networks. Designed for comfort, ease-of-use, and to satisfy customer requirements, it inherits a tradition of quality voice communication over IP networks while reducing the human resource requirements of VoIP network deployment. It is a cost-effective gateway for call termination (VoIP to GSM) and origination (GSM to VoIP), fully compatible with leading soft-switches and SIP servers.

• Key Features and Benefits:

  • High-Capacity SIM Slots: Features 32 Mobile Channels with 128 SIM Slots, making it easy to conduct SIM rotation locally.

  • Network Compatibility: Supports working with different mobile networks and is compatible with LTE-FDD, LTE-TDD, WCDMA, and GSM networks.

  • Advanced Functions: Supports making calls through VoLTE, Auto Call/SMS Generation, Auto Update SIM Number and Balance Check, and No Balance Alarm with Call Minutes Limitation.

• Technical & Physical Specifications:

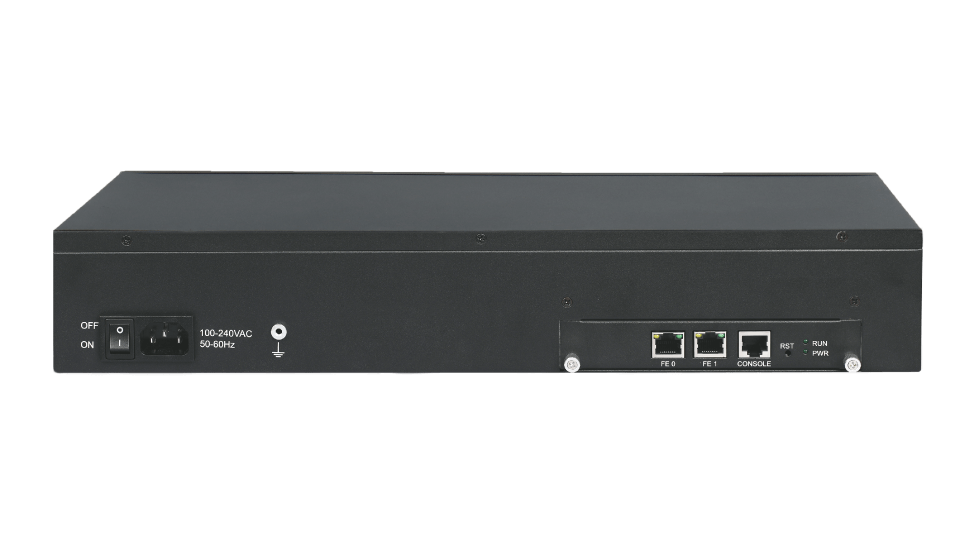

  • Physical Interfaces: 32 Mobile Channels, SMA Antenna Connectors, 210/100/1000M-T RJ45 Ethernet ports, and 1RS232 (115200bps) Console port.

  • Frequency Bands: Supports multiple options including Type A, Type E, Type V, Type J, and Type AU covering diverse FDD, TDD, WCDMA, and GSM bands.

  • Power Supply & Consumption: Power supply of 100-240V, 50-60Hz; power consumption of 68W.

  • Dimensions & Weight: Dimensions (W/D/H) of 44027075mm, net weight of 4.7kg, and package weight of 5.2kg.

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and operation humidity from 10% to 90% (non-condensing).
