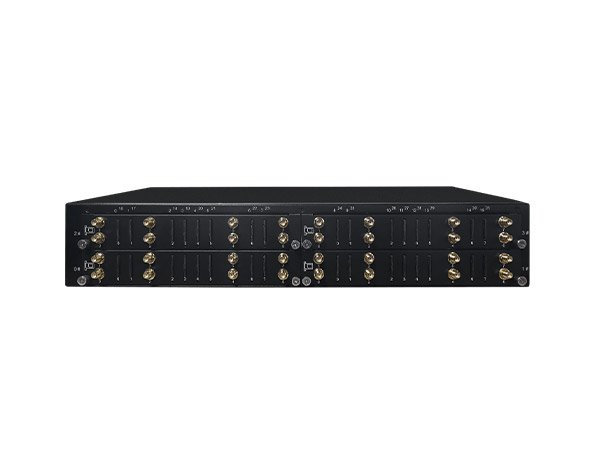

UC2000-VG GSM/LTE VoIP Gateway

The DINSTAR UC2000-VG series is a 32-channel wireless gateway based on DINSTAR’s new hardware platform and powerful embedded CPU, leveraging state-of-the-art VoIP/SIP technology, which enables a smooth transit between 4G/3G/2G mobile networks and VoIP networks. Adding a 2.3-inch graphic LCD display on DINSTAR’s classic design makes this model easier to manage for users. Moreover, with an open API, it allows users to build their own application software to send SMS/USSD messages, bulk SMS, or push text messages from email, HTTP, etc. It is suitable for enterprises, multi-site organizations, call centers, and areas with limited landlines like rural areas to cut down telephony costs and enable easy & efficient communications.

• Key Features and Benefits:

  • High-Density Capacity: Supports up to 32 channels of GSM or LTE.

  • LCD Display: Features a 2.3-inch graphic LCD display for enhanced device management.

  • Hot-Swappable SIM Cards: Equipped with hot-swappable SIM card slots.

  • Advanced Communication: Supports Voice over LTE (VoLTE), HTTP API for SMS application integration, SMS to Email & Email to SMS, and flexible dial & manipulation rules.

  • Network Compatibility: Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM networks and mainstream VoIP platforms.

• Technical & Physical Specifications:

  • Hardware Interfaces: 32 Mobile Channels, 32 SIM Card Slots, SMA Antenna Connectors, 2.3-inch graphic LCD display, 210/100/1000 Base-T RJ45 Ethernet ports, 1RS232 (USB-B connector) console port, and LED indicators for Power, RUN, and Channels.

  • Frequency Bands (2G/3G/4G):

    • UC2000-VG-32G: GSM Gateway: 850/900/1800/1900MHz.

    • UC2000-VG-32W: WCDMA Gateway with two options (Option A: WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz; Option B: WCDMA 900/2100MHz and GSM 900/1800MHz).

    • UC2000-VG-32T (VoLTE): Multiple type options (Type A, Type E, Type V, Type J, Type AU) covering various FDD, TDD, WCDMA, and GSM frequency bands.

  • Power Supply & Consumption: Power supply of 100-240V, 50-60Hz; power consumption of 68W.

  • Dimensions & Weight: Dimensions (W/D/H) of 44027075mm and unit weight of 5.5kg.

  • Operating Environment: Operating temperature from 0°C to 40°C, storage temperature from -20°C to 80°C, and operation humidity from 10% to 90%.
