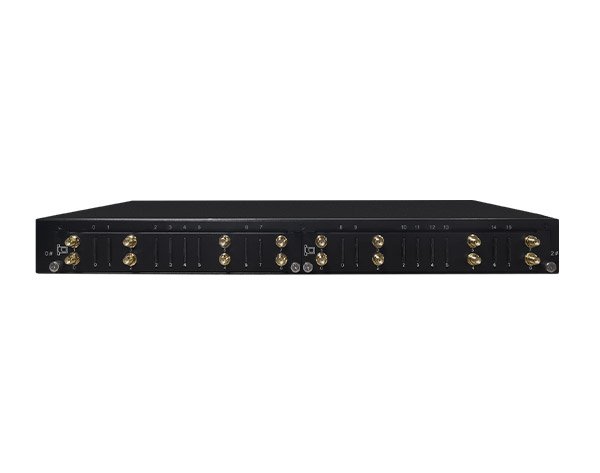

UC2000-VF Multi-SIM GSM&3G&LTE VoIP Gateway

The Dinstar UC2000-VF GSM/WCDMA/LTE VoIP Gateway is a multi-functional product used to effectively implement the smooth transition between PLMN (Mobile) and VoIP networks. Designed for comfort and ease of use, it satisfies the necessary requirements of customers by inheriting a tradition of quality voice communication over IP networks while reducing the human resource requirements of VoIP network deployment. It is a cost-effective gateway for call termination (VoIP to GSM) and origination (GSM to VoIP), fully compatible with leading soft-switches and SIP servers.

• Key Features and Benefits:

  • High-Capacity SIM Slots: Features 16 Mobile Channels with 64 SIM Slots, making it easy to conduct SIM rotation locally.

  • Network Compatibility: Compatible with LTE-FDD, LTE-TDD, WCDMA, and GSM mobile networks.

  • Advanced Voice & Management: Supports Make Call through VoLTE, Auto Call/SMS Generation, Auto Update SIM Number and Balance Check, and No Balance Alarm with Call Minutes Limitation.

• Technical & Physical Specifications:

  • Physical Interfaces: 16 Mobile Channels, SMA Antenna Connectors, 210/100/1000M-T RJ45 Ethernet ports, and 1RS232 (115200bps) Console port.

  • Frequency Bands: Supports multiple options including Type A, Type E, Type V, Type J, and Type AU covering diverse FDD, TDD, WCDMA, and GSM bands.

  • Power Supply & Consumption: Power supply of 100-240V, 50-60Hz; power consumption of 38W.

  • Dimensions & Weight: Dimensions (W/D/H) of 44027044mm and unit weight of 3.8kg.

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and operation humidity from 10% to 90% (non-condensing).
