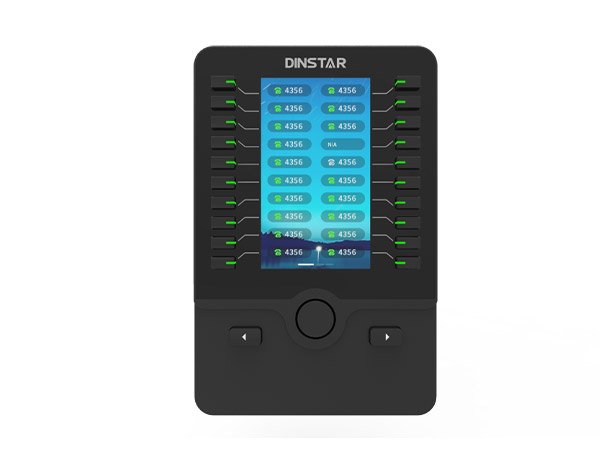

Dinstar DXP60 Feature-rich and Practical Color-screen Expansion Module

The Dinstar DXP60 expansion module is dedicated to expanding the functionality and enhancing the flexibility of SIP phones. It features a 4.3-inch pixel color display screen with backlight, providing users with a rich visual experience. It supports 20 physical keys with dual-color LEDs, offering 3 display pages and up to 60 programmable keys. The DXP60 is suitable for receptionists, administrative assistants, call center agents, advanced users, and managers who need to regularly monitor and manage a large volume of calls efficiently. It can be used in conjunction with Dinstar’s C63 series, C64 series, and C66 series SIP phones to handle functions such as speed dial, intercom, call hold, call transfer, and voicemail.

• Key Features and Benefits:

  • Display & Navigation: Features a 4.3″ 272 x 480 pixel color display with backlight, 16-bit depth color, support for 3 page views, and different color icons for each function.

  • Programmable Capacity: Offers 20 physical keys per page with dual-color LEDs and 2 independent control keys, supporting up to 60 programmable keys in total.

  • Daisy-Chain Expansion: Supports daisy-chaining up to 3 modules to provide extended functionality for high-volume call environments.

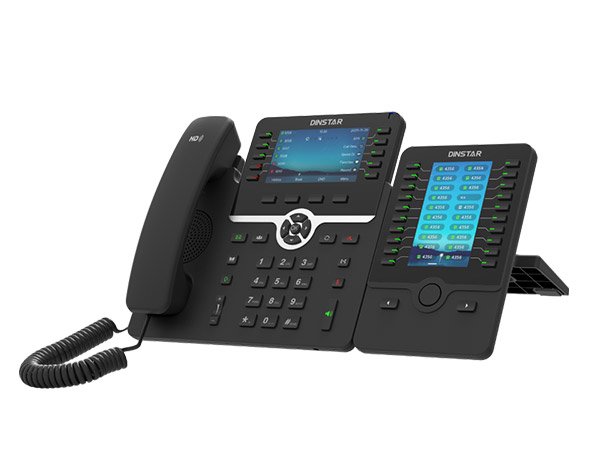

  • Compatibility: Fully compatible with Dinstar C63, C64, and C66 series IP phones.

• Technical & Physical Specifications:

  • Power Consumption: Max power consumption of 2.3W (note: an external power adapter 5V/1A is required when supporting two or three expansion modules).

  • Dimensions & Weight: Dimensions (W/D/H) of 128mm * 188mm * 38.5mm, with a stand offering 2 adjustable angles.

  • Package Features: Giftbox size of 140 * 198 * 72mm; carton measurements of 415 * 380 * 310mm (20 PCS per carton, net weight of 5kg, gross weight of 9.6kg).
