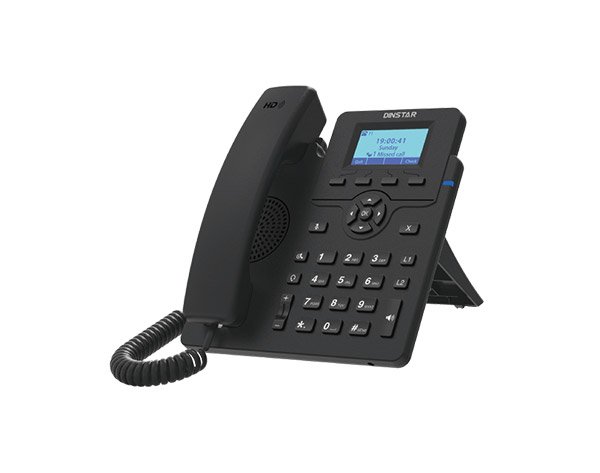

Dinstar C60U-W & C60UP-W Enterprise Entry-Level Wi-Fi IP Phone

The C60U-W and C60UP-W are entry-level IP phones designed for diverse IP voice phone systems where wireless network deployment is preferred. Integrating built-in 2.4GHz and 5GHz Wi-Fi (supporting 802.11 b/g/n and 802.11 a/n/ac with WPA/WPA2-PSK encryption) alongside a 132×64 pixel backlit graphical LCD, they provide an intuitive user interface and high-definition voice calls. Equipped with a full-duplex speaker and microphone system and a Digital Signal Processor (DSP), they deliver crystal-clear audio quality. They are fully compatible with leading IP telephony systems and third-party IP PBXs such as 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, BroadSoft, and FreeSWITCH.

• Key Features and Benefits:

  • Built-in Wi-Fi: Features integrated dual-band 2.4GHz and 5GHz Wi-Fi supporting 802.11 b/g/n and 802.11 a/n/ac standards with secure WPA/WPA2-PSK encryption.

  • Display & Capacity: Features a 132×64 pixel graphical LCD with backlight, supporting 2 SIP accounts and 2 line keys.

  • Audio & Conferencing: Delivers HD Voice, full-duplex speakerphone, and 5-way conference capability.

  • Model Differences:

    • C60U-W: PoE Support (No), Power Adapter (Included).

    • C60UP-W: PoE Support (Yes), Power Adapter (Optional).

• Technical & Physical Specifications:

  • Physical Interfaces: 2x RJ45 10/100M Ethernet ports, 1x handset port (4P4C, RJ9), 1x headset port (4P4C, RJ9), and wall-mountable design with a stand offering 2 adjustable angles (40° and 45°).

  • Power & Consumption: Input voltage of 5VDC; power supply via 5Vdc power adapter or PoE (C60UP-W); typical power consumption of 1.4W.

  • Dimensions & Weight: Dimensions (W x H x D) of 180 x 192 x 36mm (without foot stand); device weight approx. 370g, foot stand approx. 60g.

  • Operating Environment: Operating temperature from 0°C to 40°C and operating humidity from 10% to 95% (non-condensing).
