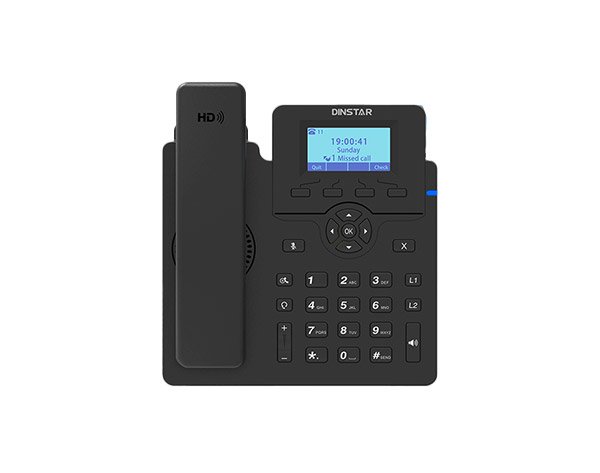

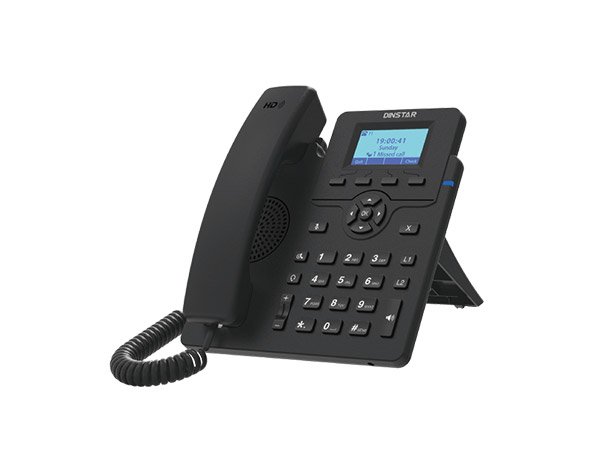

Dinstar C60U-T & C60UP-T Enterprise Entry-Level 4G IP Phone

The C60U-T and C60UP-T are entry-level 4G IP phones designed for diverse IP voice phone systems where mobile cellular networking is required. Integrating a 132×64 pixel graphical LCD with a backlight, they provide an intuitive user interface, support high-definition voice calls, and feature built-in 4G LTE TDD and LTE FDD connectivity. Equipped with a full-duplex speaker and microphone system alongside a Digital Signal Processor (DSP), they deliver crystal-clear audio quality. They are fully compatible with leading IP telephony systems and third-party IP PBXs such as 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, BroadSoft, and FreeSWITCH.

• Key Features and Benefits:

  • 4G LTE Connectivity: Supports LTE TDD and LTE FDD network bands for flexible wireless deployment.

  • Display & Capacity: Features a 132×64 pixel graphical LCD with backlight, supporting 2 SIP accounts and 2 line keys.

  • Audio & Conferencing: Delivers HD Voice, full-duplex speakerphone, and 5-way conference capability.

  • Model Differences:

    • C60U-T: PoE Support (No), Power Adapter (Included).

    • C60UP-T: PoE Support (Yes), Power Adapter (Optional).

• Technical & Physical Specifications:

  • Physical Interfaces: 2x RJ45 10/100M Ethernet ports, 1x handset port (4P4C, RJ9), 1x headset port (4P4C, RJ9), and wall-mountable design with a stand offering 2 adjustable angles.

  • Power & Consumption: Input voltage of 5VDC; power supply via 5Vdc power adapter or PoE (C60UP-T).

  • Dimensions & Weight: Dimensions (W x H x- D) of 180 x 192 x 36mm (without foot stand).

  • Operating Environment: Operating temperature from 0°C to 40°C and operating humidity from 10% to 95% (non-condensing).
