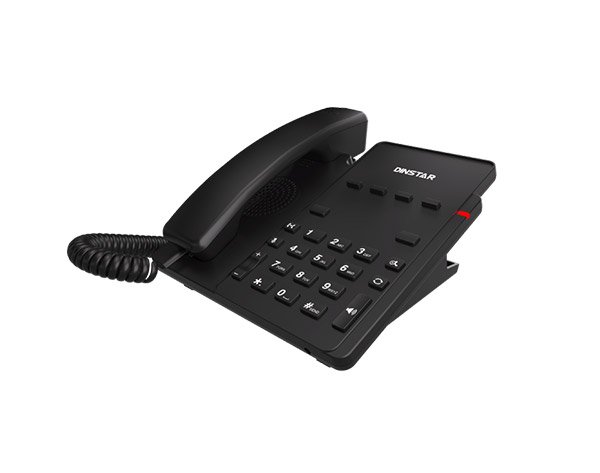

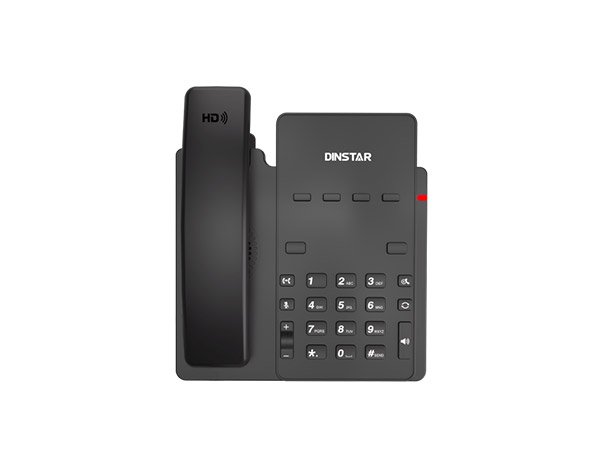

Dinstar H60P HD Audio Enterprise Entry-Level Hotel IP Phone

The Dinstar H60P Hotel Phone is an entry-level IP phone specifically designed for the hospitality sector to deliver an exceptional communication experience to guests. Its streamlined design without a display makes it simple, reliable, and easy to operate while adapting flexibly to hotel environments. The H60P integrates HD audio technology with a full-duplex speakerphone to ensure crystal-clear calls. It supports PoE to reduce wiring costs and features six programmable soft keys tailored for one-touch hotel hotlines and services (such as front desk, room service, or housekeeping). It also supports customized faceplates and offers seamless compatibility with Dinstar IP PBXs and major third-party platforms including 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, BroadSoft, and FreeSWITCH.

• Key Features and Benefits:

  • Hospitality-Focused Design: Screenless interface with support for customized hotel specialty faceplates and branded service labeling.

  • One-Touch Hotlines: 6 programmable soft keys configured for hotel service hotlines, speed dial, and call handling.

  • Audio & Conferencing: HD Voice with wideband/narrowband codecs, full-duplex speakerphone, and 5-way audio conferencing.

  • Power & Network: Dual-port 10/100Mbps Ethernet with standard PoE support (IEEE 802.3af) and an optional 5V power adapter.

• Technical & Physical Specifications:

  • Physical Interfaces: 2x RJ45 10/100M Ethernet ports, 1x handset port (4P4C, RJ9), and 1x headset port (4P4C, RJ9); desktop installation method.

  • Power & Consumption: Input voltage of 5VDC; powered via PoE or optional 5Vdc power adapter; power consumption of 1.4W.

  • Dimensions & Weight: Dimensions (W x H x D) of 180 x 192 x 36mm (without foot stand); device weight approx. 370g.

  • Operating Environment: Operating temperature from 0°C to 40°C and operating humidity from 10% to 95% (non-condensing).
