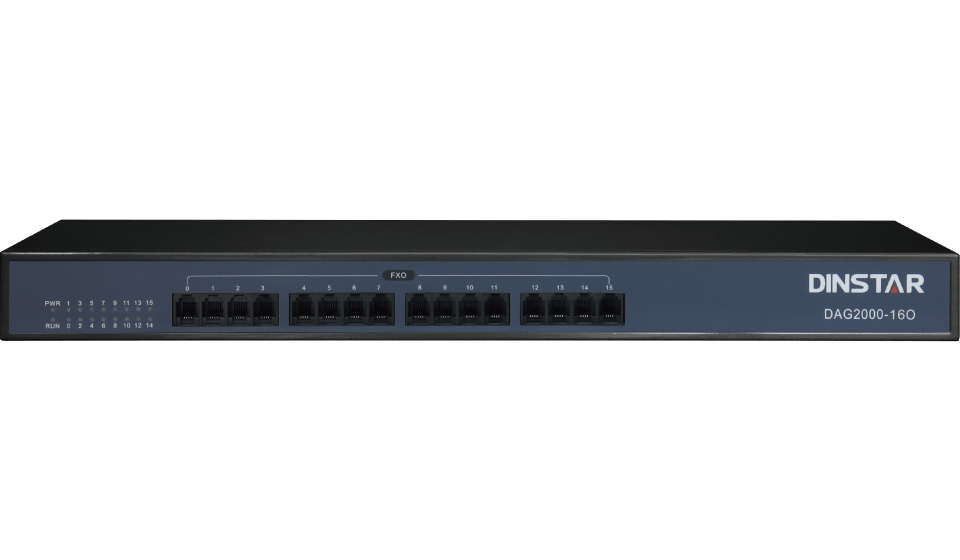

DAG2000-16O FXO Analog VoIP Gateway
A multi-functional analog gateway offering seamless connectivity between IP-based telephony networks, legacy POTS, and PBX systems, equipped with 16 FXO ports, support for IPv4 and IPv6, standard SIP protocols, and compatibility with leading IMS/NGN platforms.
The DAG2000-16O is ideally suited for small and medium businesses, call centers, and multi-location environments that need VoIP services. It supports the standard SIP protocol and is fully compatible with leading IMS/NGN platforms and SIP-based IP telephony systems.
-
Key Features and Benefits:
-
High-Density FXO Design: Cost-effective gateway featuring 16 FXO ports.
-
Fax Support: Fax over IP via T.38 and Pass-Through.
-
Dual Stack & Protocols: Supports both IPv4 and IPv6, TR069, and SNMP.
-
Codecs & Voice Quality: Supports multiple codecs including G.711A/U, G.723.1, and G.729A/B with echo cancellation (G.168 up to 128ms), silence suppression, and VAD.
-
-
Technical & Physical Specifications:
-

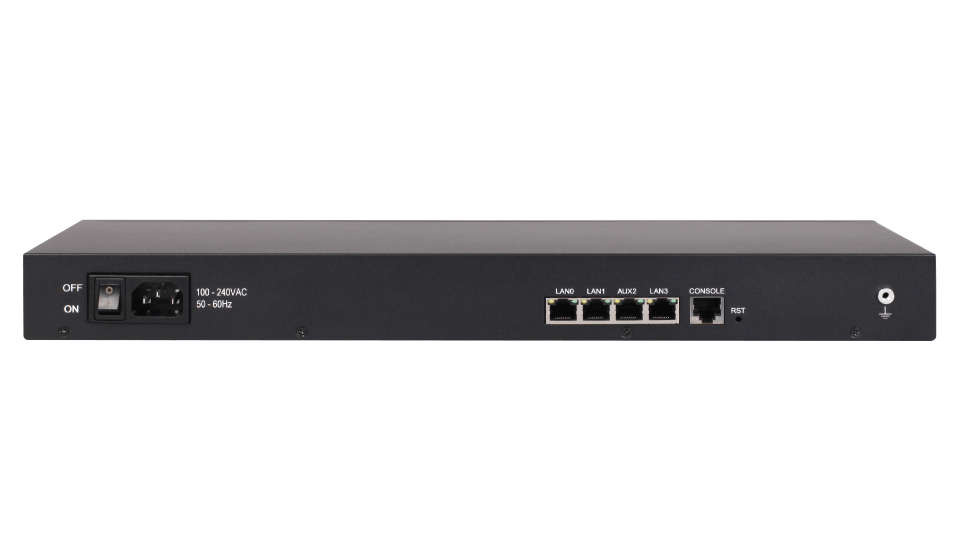

Physical Interfaces: 16 FXO ports (RJ11), 3 x LAN ports (10/100Mbps, RJ-45), and 1 x RS232 console port (115200bps).
-
Power Supply: 100-240VAC, 50-60 Hz; power consumption of 30W (typical).
-
Dimensions & Weight: Dimensions (W/D/H) of 44023044mm and unit weight of 2.7kg.
-
Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
-
