DAG2000-8S8O Hybrid Analog VoIP Gateway

The DAG2000-8S8O is designed for small businesses, family offices, remote offices, and branch businesses, providing a low-cost, simple-operation VoIP solution. The FXS/FXO hybrid gateway supports network and power failure lifeline features, flexibly achieving interoperability with simulation PBX and offering reliable voice quality assurance for traditional voice transition to IP voice.

• Key Features and Benefits:

  • Hybrid Ports: Equipped with 8 FXS ports and 8 FXO ports using RJ-11 connectors.

  • Lifeline Support: Includes power and network failure lifeline features to maintain critical communications.

  • Advanced Features: Supports flexible port grouping, IP trunking, flexible routing and manipulation, data/voice/management VLANs, and voice & fax all-in-one capabilities.

  • Management & Codecs: Supports SNMP (v1/v2/v3), TR069, TR181, automatic firmware updates, and multiple audio codecs including G.711A/U, G.723.1, and G.729A/B with echo cancellation (G.168 up to 128ms).

• Technical & Physical Specifications:

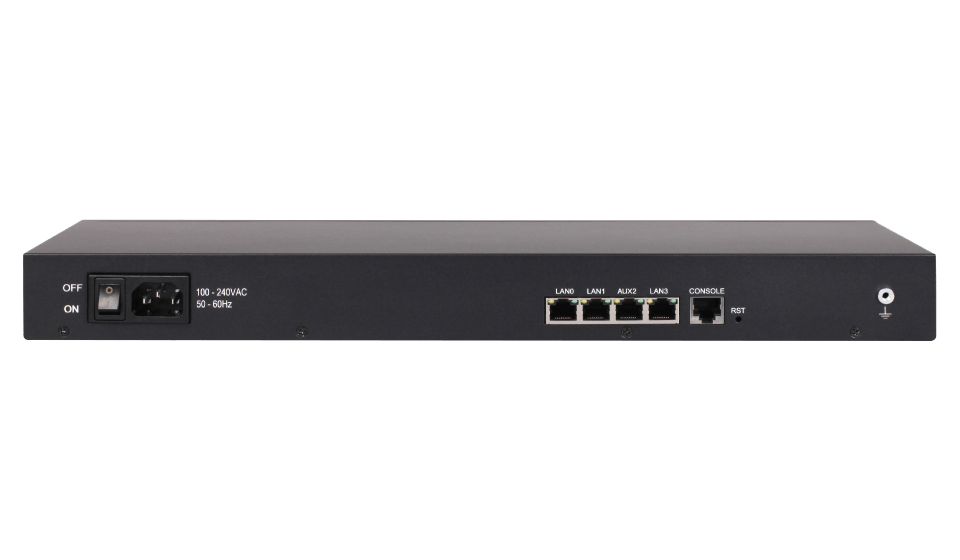

  • Physical Interfaces: 8 FXS and 8 FXO ports (RJ-11), 3 x LAN ports (10/100Mbps), and 1 x RS232 (115200bps) console port.

  • Power Supply: 100-240VAC, 50-60Hz; power consumption of 48W.

  • Operating Environment: Operator temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (no condensation).
