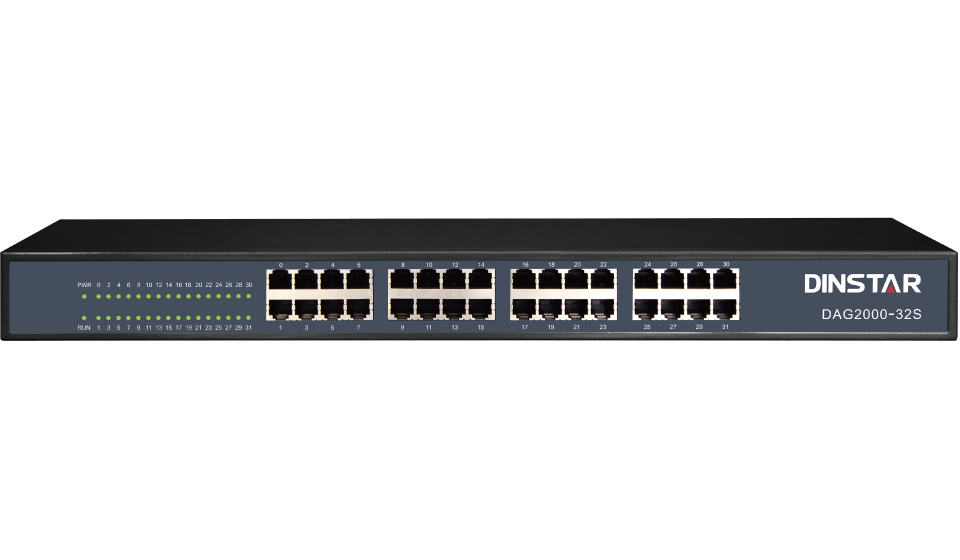

DAG2000-32S FXS Analog VoIP Gateway
A multi-functional analog gateway offering seamless connectivity between IP-based telephony networks, legacy telephones (POTS), fax machines, and PBX systems, equipped with 32 FXS ports via standard RJ11 and RJ21 interfaces, support for IPv4 and IPv6 dual stack, standard SIP protocols, and flexible dial plans.
The DAG2000-32S is ideally suited for small and medium businesses, call centers, and multi-location environments that need VoIP services. It supports the standard SIP protocol and is fully compatible with leading IMS/NGN platforms and SIP-based IP telephony systems.
-
Key Features and Benefits:
-
High-Density Design: Cost-effective gateway featuring 32 FXS ports.
-
Flexible Interfaces: Equipped with standard RJ11 and RJ21 (50 pin) connectors.
-
Fax Support: Fax over IP via T.38 and Pass-Through (up to 14.4kbps).
-
Dual Stack Network: Full support for both IPv4 and IPv6 (Dual Stack).
-
Management & Codecs: Supports TR069 and SNMP, alongside multiple audio codecs including G.711A/U, G.723.1, G.729A/B, AMR, ILBC, G.726, and optional Opus.
-
-
Technical & Physical Specifications:
-

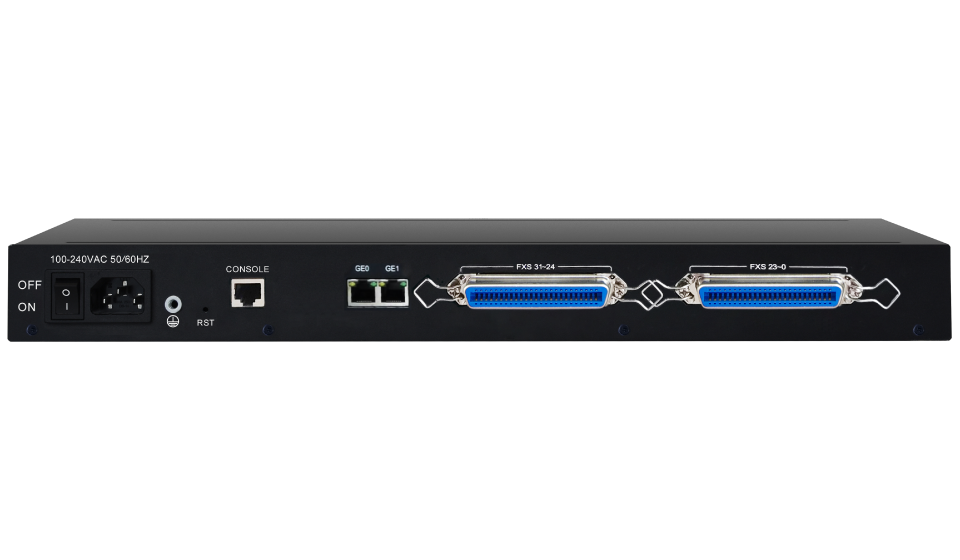

Physical Interfaces: 32 FXS ports (with RJ11 and 2*RJ21, 50 pin connectors), 3 x LAN ports (10/100Mbps, RJ-45), and 1 x RS232 console port (115200bps).
-
Power Supply: 100~240VAC, 50-60 Hz; power consumption of 40W (typical).
-
Dimensions & Weight: Dimensions (W/D/H) of 44025044mm and unit weight of 3.2kg.
-
Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
-
