DAG2000-16S FXS Analog VoIP Gateway
A multi-functional analog gateway offering seamless connectivity between IP-based telephony networks, legacy POTS, fax machines, and PBX systems, equipped with 16 FXS ports, support for IPv4 and IPv6 dual stack, standard SIP protocols, and flexible dial plans.
The DAG2000-16S is ideally suited for small and medium businesses, call centers, and multi-location environments that need VoIP services. It supports the standard SIP protocol and is fully compatible with leading IMS/NGN platforms and SIP-based IP telephony systems.
-
Key Features and Benefits:
-
High-Density Design: Cost-effective gateway featuring 16 FXS ports.
-
Fax Support: Fax over IP via T.38 and Pass-Through (up to 14.4kbps).
-
Dual Stack Network: Full support for both IPv4 and IPv6 (Dual Stack).
-
Management & Codecs: Supports TR069 and SNMP, alongside multiple audio codecs including G.711A/U, G.723.1, G.729A/B, AMR, G.726, and optional Opus.
-
-
Technical & Physical Specifications:
-

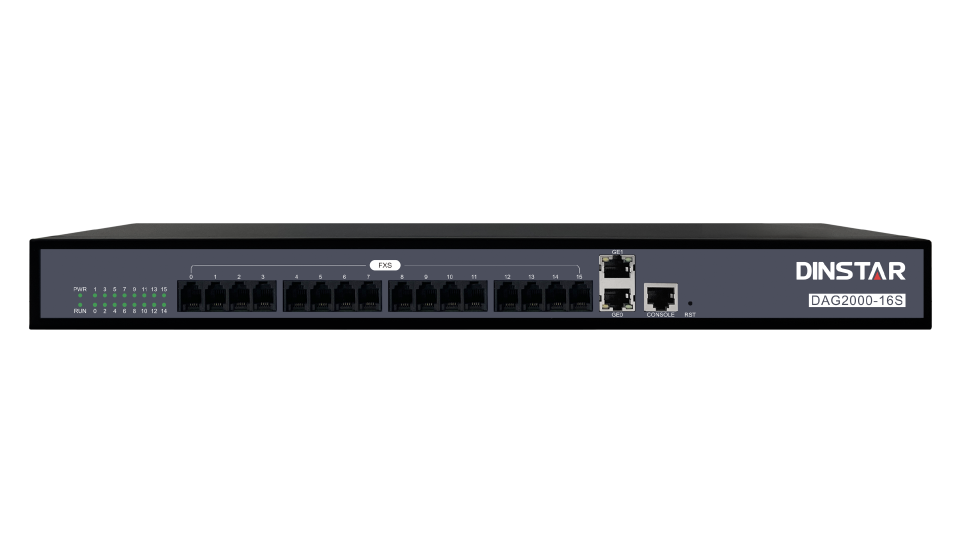

Physical Interfaces: 16 FXS ports (RJ11), 3 x LAN ports (10/100Mbps, RJ-45), and 1 x RS232 console port (115200bps).
-

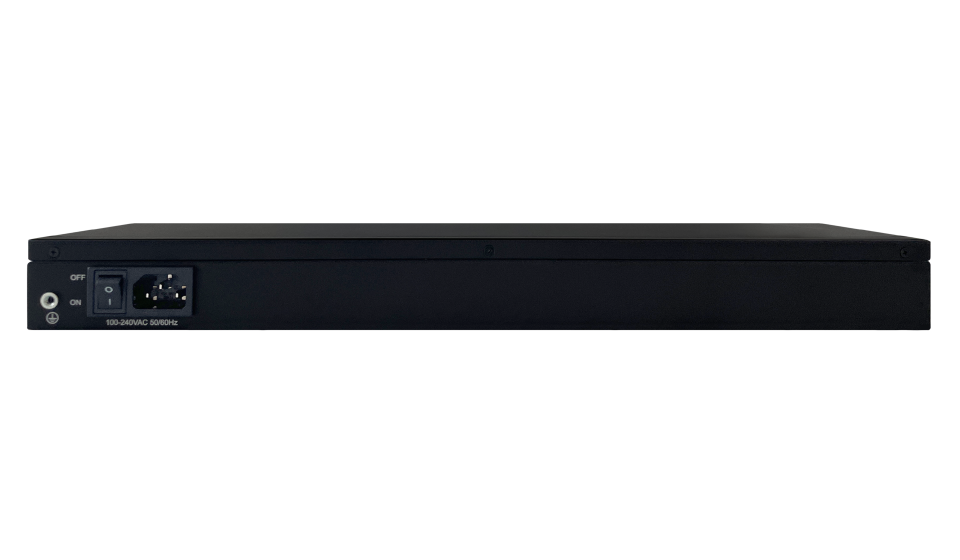

Power Supply: 100~240VAC, 50-60 Hz; power consumption of 30W (typical).
-
Dimensions & Weight: Dimensions (W/D/H) of 44023044mm and unit weight of 2.7kg.
-
Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
-
