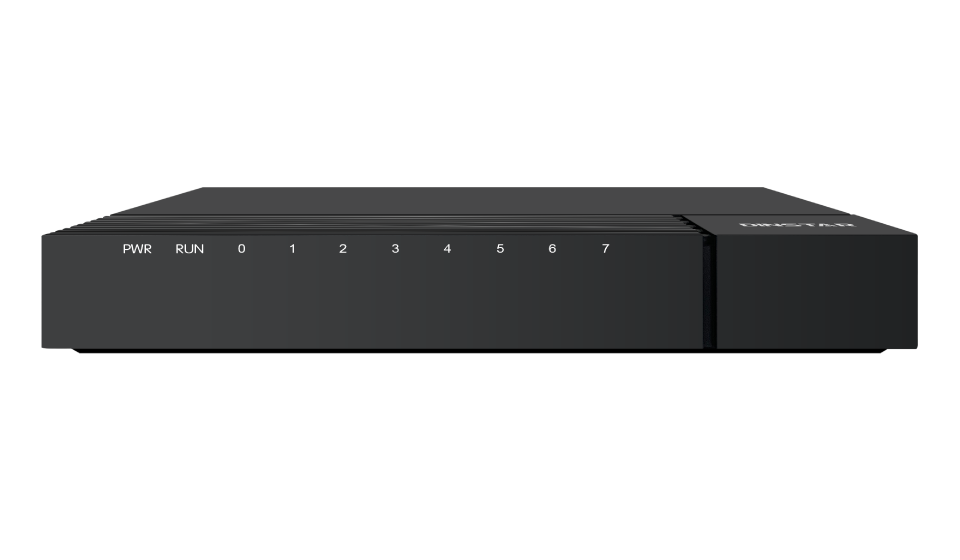

DAG1000-8S FXS Analog VoIP Gateway
A multi-functional analog gateway offering seamless connectivity between IP-based telephony networks, legacy POTS, fax machines, and PBX systems, equipped with 8 FXS ports, support for IPv4 and IPv6 dual stack, and flexible dial plans.
The DAG1000-8S is ideally suited for small and medium businesses, call centers, and multi-location environments that need VoIP services. It supports the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP telephony systems.
-
Key Features and Benefits:
-
Cost-Effective Design: Cost-effective gateway featuring 8 FXS ports.
-
Fax Support: Fax over IP via T.38 and Pass-Through (up to 14.4kbps).
-
Dual Stack Network: Full support for both IPv4 and IPv6 (Dual Stack).
-
Management & Codecs: Supports TR069 and SNMP, alongside multiple audio codecs including G.711A/U, G.723.1, G.729A/B, AMR, ILBC, and optional Opus.
-
-
Technical & Physical Specifications:
-

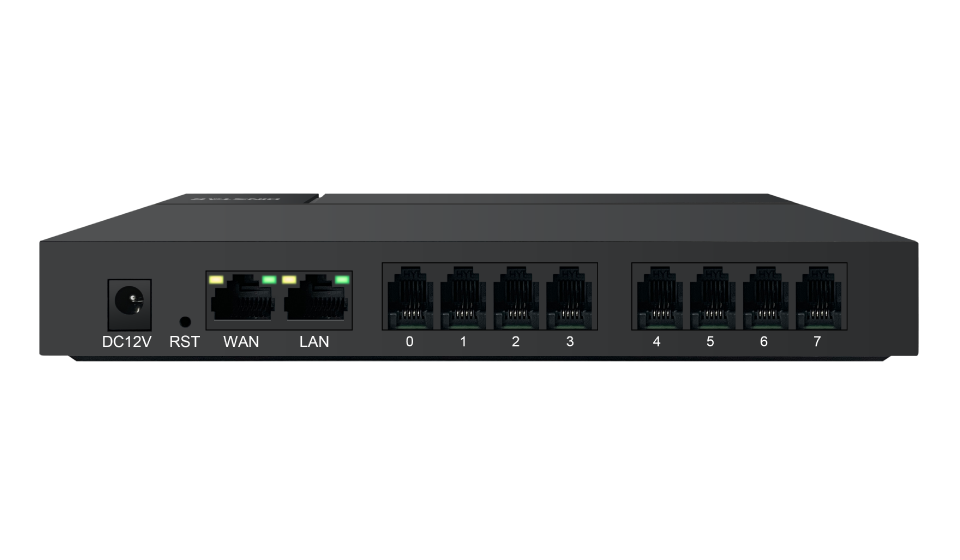

Physical Interfaces: 8 FXS ports (RJ11), 1 x WAN port (10/100/1000Mbps, RJ-45), 2 x LAN ports (10/100/1000Mbps, RJ-45), and Console N/A.
-
Power Supply: 100-240VAC, 50-60 Hz @ DC12V 2A; power consumption of 18W (typical).
-
Dimensions & Weight: Dimensions (W/D/H) of 24215240mm and unit weight of 1kg.
-
Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
-
