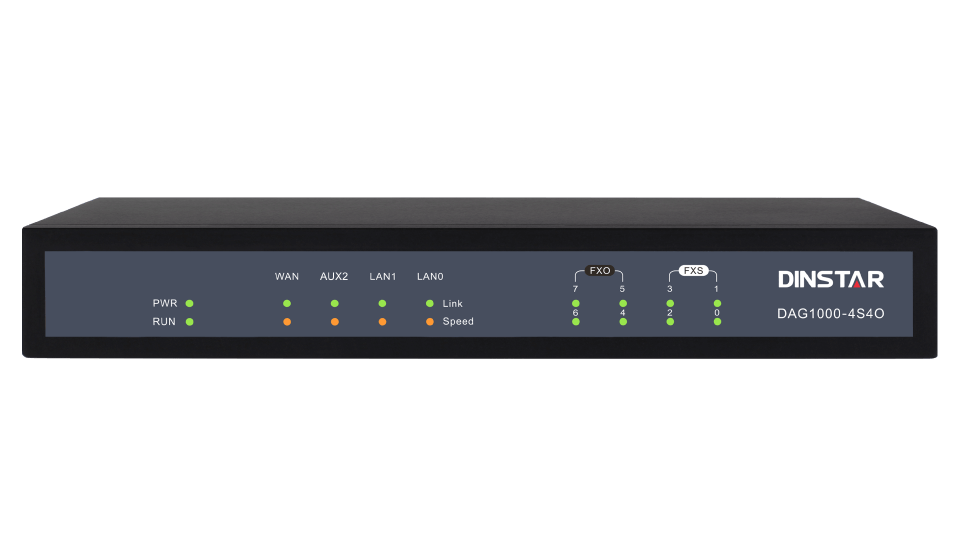

DAG1000-4S4O Hybrid Analog VoIP Gateway

The DAG1000-4S4O is designed for small businesses, family offices, remote offices, and branch businesses, providing a low-cost, simple-operation VoIP solution. The FXS/FXO hybrid gateway supports network and power failure lifeline features, flexibly achieving interoperability with simulation PBX and offering reliable voice quality assurance for traditional voice transition to IP voice.

• Key Features and Benefits:

  • Hybrid Ports: Equipped with 4 FXS ports and 4 FXO ports using RJ-11 connectors.

  • Lifeline Support: Includes power and network failure lifeline features to maintain critical communications.

  • Advanced Features: Supports flexible port grouping, IP trunking, flexible routing and manipulation, data/voice/management VLANs, and voice & fax all-in-one capabilities.

  • Management & Codecs: Supports SNMP (v1/v2/v3), TR069, TR181, automatic firmware updates, and multiple audio codecs including G.711A/U, G.723.1, and G.729A/B with echo cancellation (G.168 up to 128ms).

• Technical & Physical Specifications:

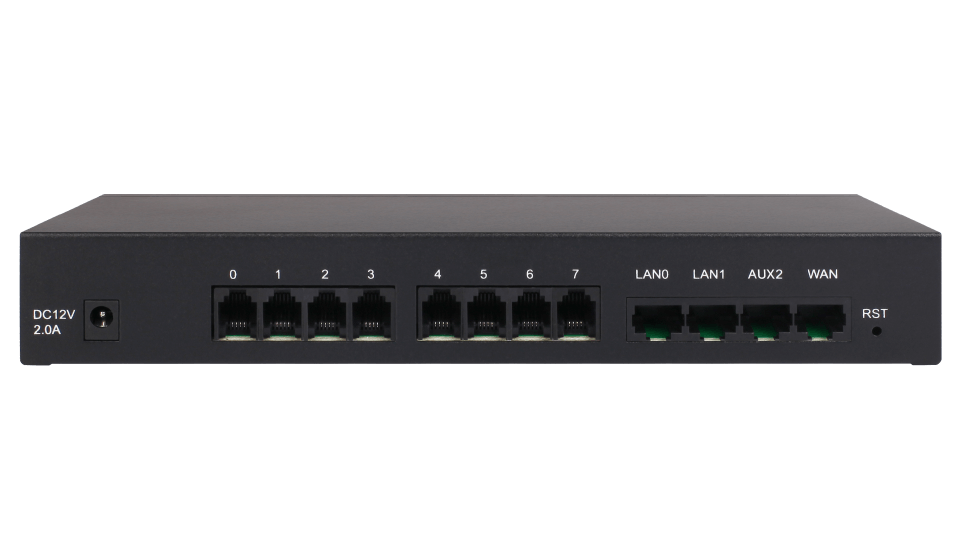

  • Physical Interfaces: 4 FXS and 4 FXO ports (RJ-11), 1 x WAN port (10/100Mbps), and 2 x LAN ports (10/100Mbps).

  • Power Supply: Input 100~240VAC, Output 12VDC, 2A; power consumption of 20W.

  • Operating Environment: Operator temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (no condensation).
