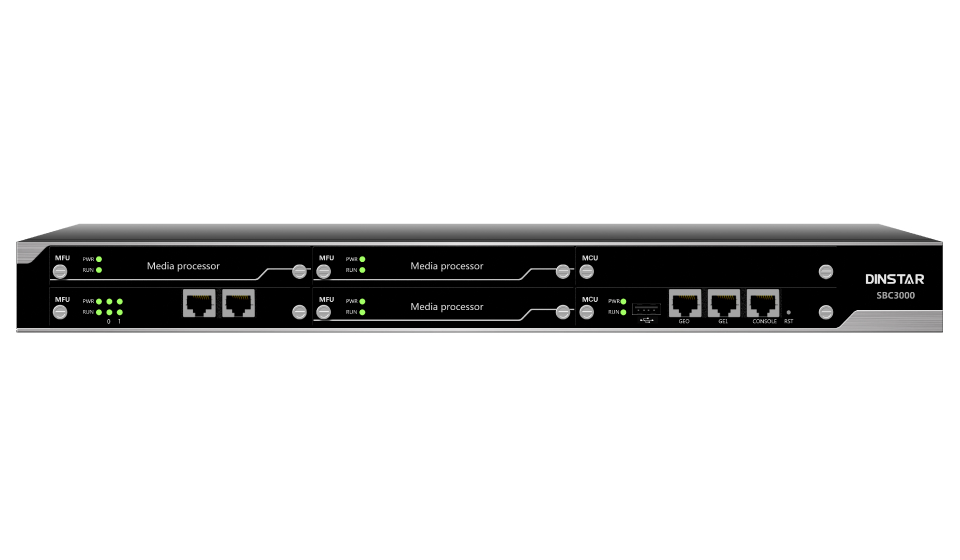

SBC3000 Session Border Controller

The Dinstar SBC3000 provides rich SIP-based services such as safe network access, robust security, system interconnectivity, flexible session routing & policy management, QoS, media transcoding and media processing for small-and-medium telecommunication operators. With distributed multi-core processor, rear panel for non-blocking gigabit switching data network as well as embedded Linux operating system, the session border controller delivers high capability while achieves low power dissipation. It is able to process up to 2000 concurrent SIP sessions and transcode 1200 concurrent calls. Meanwhile, it supports dual control boards and dual hot-swappable power supplies, and allows encrypted sessions via TLS and SRTP. Apart form traditional codecs like G.729, G.723, G.711 and G.726, SBC3000 also supports the transcoding of iLBC, AMR and OPUS.

• Key Features and Benefits:

  • High Capacity: Supports up to 2000 concurrent SIP sessions and transcoding of 1200 calls on media and fax.

  • High Availability & Reliability: Features 1+1 high availability with two SBCs, dual control boards, and dual hot-swappable power supplies.

  • Security: Equipped with triple anti-attacking, embedded VoIP firewall, and prevention of DoS and DDoS attacks.

  • WebRTC Support: Supports WebRTC2SIP to turn WebRTC clients into phones with audio capability.

• Technical & Physical Specifications:

  • Physical Interfaces: MCU (Main Control Unit): 1, MPU (Main Function Unit): 4, Ethernet Ports (4x 10/100/1000M Base-T Ethernet ports), 1x USB 2.0 port, and 1x Serial Console port (RS232, 115200bps, RJ45 on MCU).

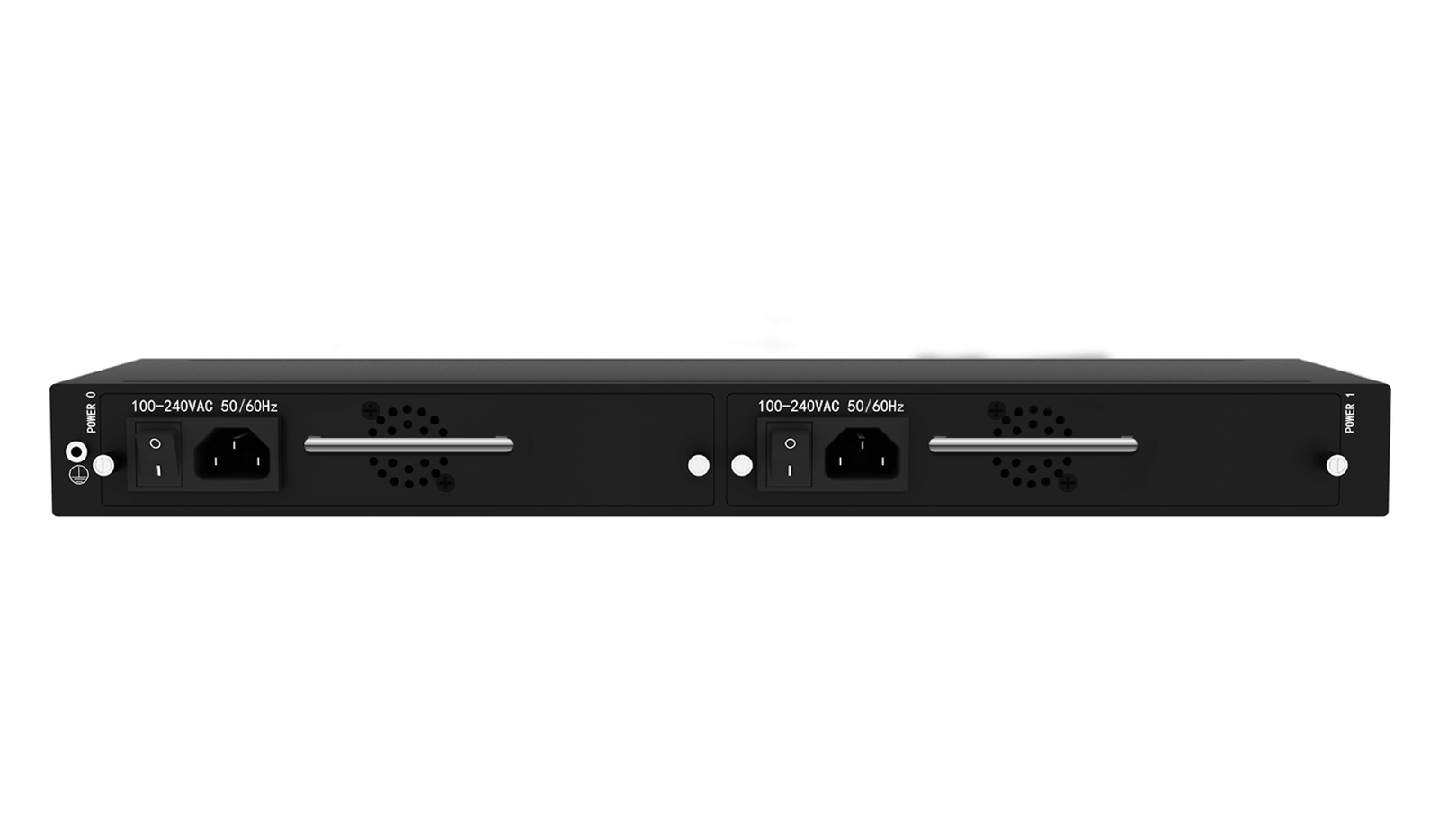

  • Power Supply & Consumption: 2 power supplies supporting AC 100-240V, 50/60Hz; power consumption of 70W.

  • Dimensions & Weight: Dimensions (W/D/H) of 437 x 320 x 44mm and unit weight of 6 kg.

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% non-condensing.
