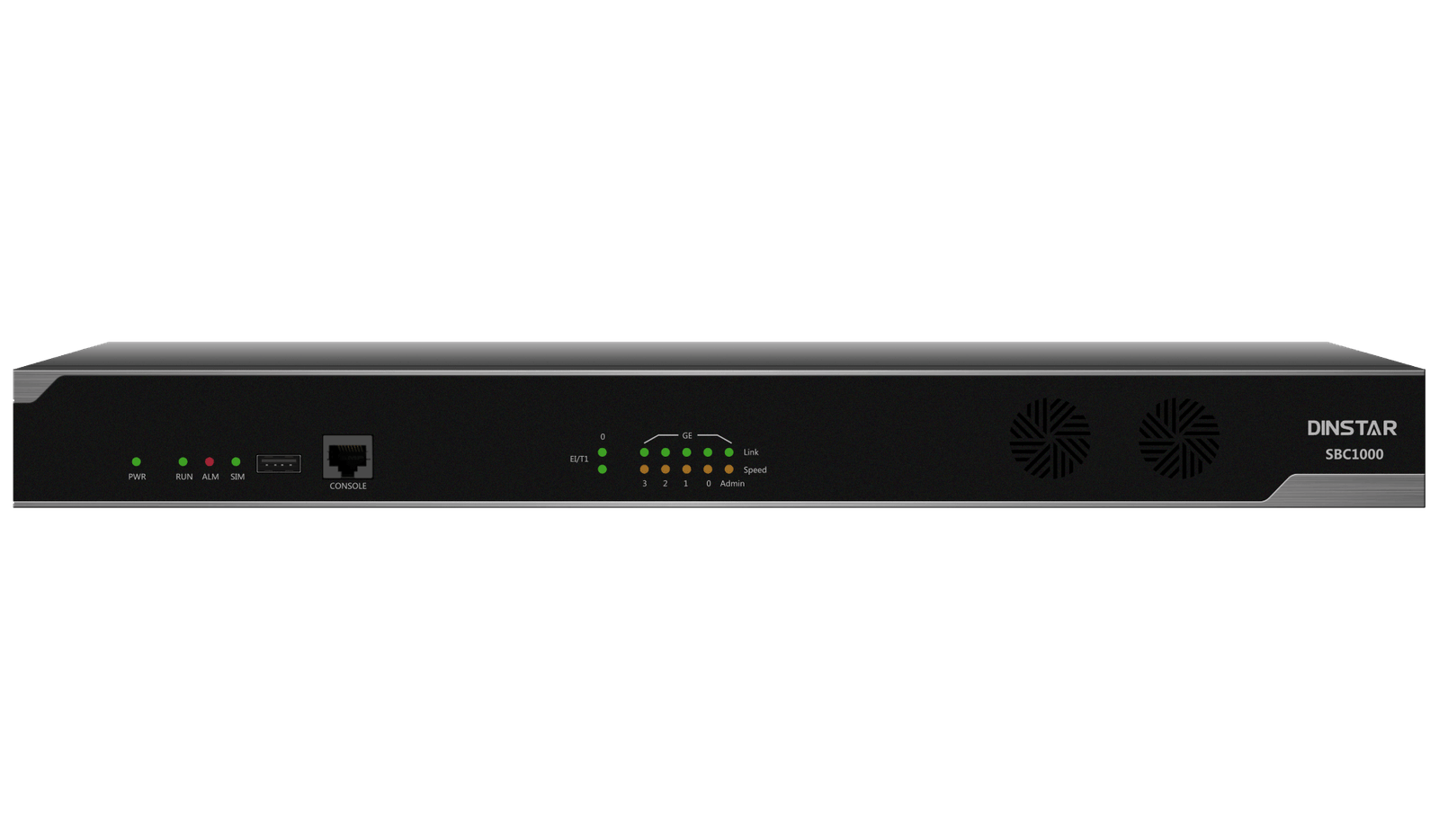

SBC1000 Session Border Controller

The Dinstar SBC1000 provides rich SIP-based services such as safe network access, robust security, system interworking, flexible session routing & policy management, QoS, media transcoding, and media processing for small-and-medium telecommunication operators. With a distributed multi-core processor, rear panel for non-blocking gigabit switching data network, and embedded Linux operating system, SBC1000 delivers high capability while achieves low power dissipation. It supports 500 concurrent SIP sessions and transcodes up to 200 concurrent calls, and allows encrypted sessions via TLS and SRTP. The session border controller supports transcoding of G.729, G.723, G.711, G.726, iLBC, AMR and OPUS. Besides, it also supports WebRTC, allowing desktop and mobile browsers to initiate and receive calls to/from your SIP service over websocket and WebRTC completely transparently.

• Key Features and Benefits:

  • Capacity: Supports up to 500 SIP sessions and 200 transcoding sessions, with a maximum of 5,000 SIP registrations.

  • Security: Features an embedded VoIP firewall, prevention of DoS and DDoS attacks, policy-based anti-attacks, and dynamic white/black listing.

  • WebRTC Support: Supports WebRTC2SIP to turn WebRTC clients into phones with audio capability.

  • Reliability: Built with a 1+1 redundant power supply design for high availability in enterprise environments.

• Technical & Physical Specifications:

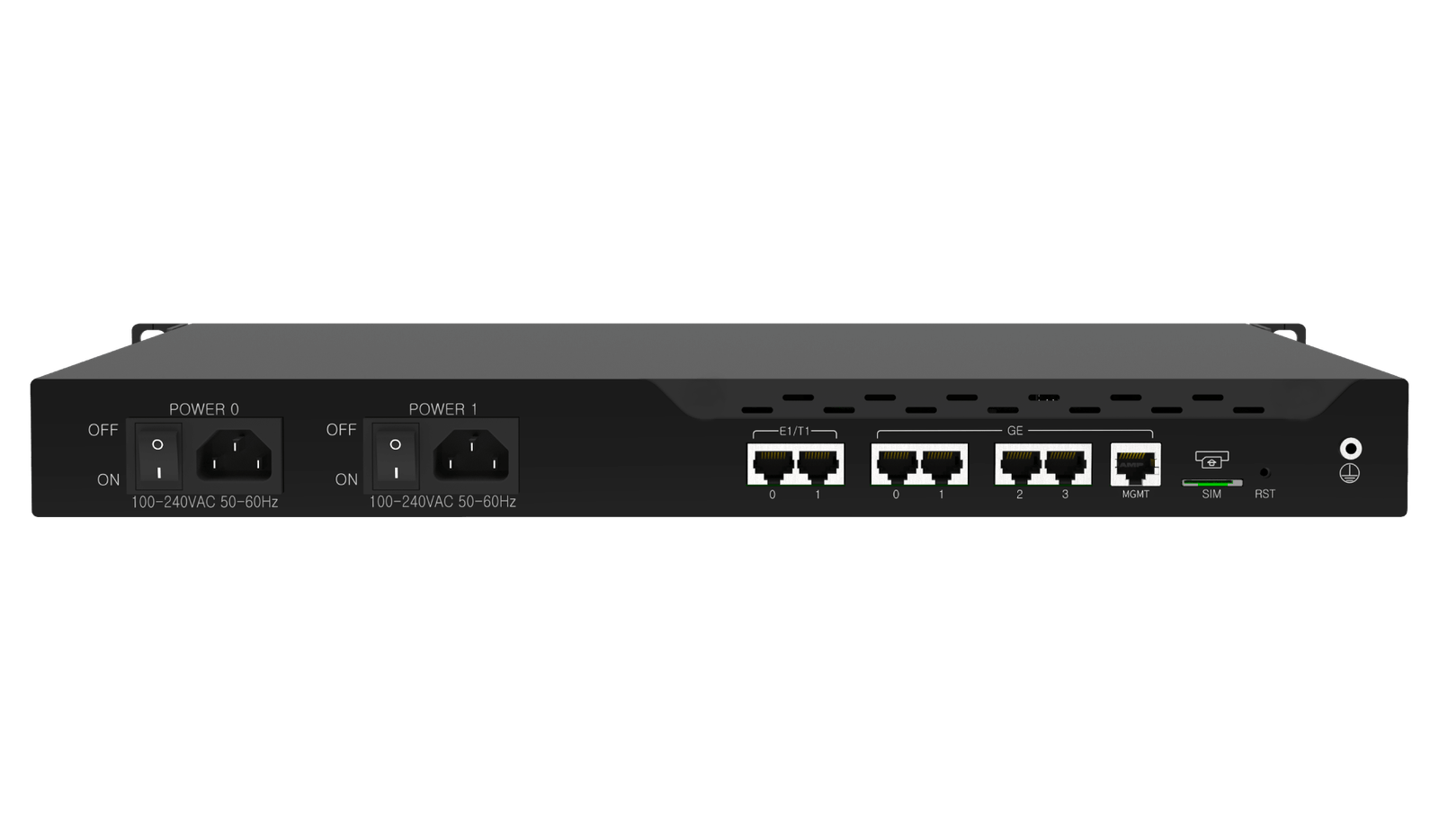

  • Physical Interfaces: 4x 10/100/1000M Base-T Ethernet ports, 1x 10/100/1000M Base-T Admin port, 1x USB 2.0 port, and 1x RS232 Serial Console port (115200bps, RJ45).

  • Power Supply & Consumption: 1+1 redundant power supply supporting 100-240VAC, 50/60 Hz; power consumption of 15W.

  • Dimensions & Weight: Dimensions (W/D/H) of 43730244mm and unit weight of 4.5 kg.

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% non-condensing.
