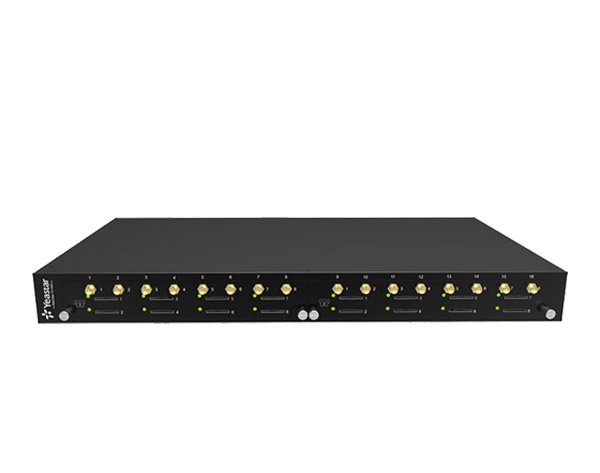

Yeastar TG Series VoIP GSM/3G/4G Gateway

The Yeastar TG Series is a range of VoIP GSM/3G/4G gateways connecting GSM or 3G WCDMA or 4G LTE networks to VoIP network directly and can support two-way communication: GSM/3G/4G to VoIP or VoIP to GSM/3G/4G. It is the best GSM trunking solution for IP-based telephone systems, the best fallback solution in case of landline outages, and also the best alternative for areas with limited landline or SIP connection. It links up PBX systems with mobile networks, helps save phone bills tremendously with mobile-to-mobile calls and SIP trunks, supports sending and receiving SMS messages via web interface and bulk SMS, and acts as a cost-effective backup when the landline network goes down.

• Key Features and Benefits:

  • Mobile Networks Integration: Connects PBX systems with GSM, 3G WCDMA, or 4G LTE networks.

  • Cost Reduction: Drastically reduces communication expenses through mobile-to-mobile routing and SIP trunking.

  • SMS Functionality: Supports sending and receiving SMS messages via a web interface as well as bulk SMS operations.

  • Flexible Models: Available in multiple channel configurations (TG100, TG200, TG400, TG800, TG1600) supporting 1, 2, 4, 8, or 16 channels.

• Technical & Physical Specifications:

  • Interface Options: TG100 (1 channel), TG200 (2 channels), TG400 (4 channels), TG800 (8 channels), and TG1600 (16 channels); 10/100 Mbps or dual 10/100 Mbps Ethernet ports depending on the model.

  • Voice Processing & Protocols: Supports SIP and IAX2 protocols; voice codecs including G.711, G.729A, GSM, ADPCM, and Speex; ITU-T G.168 echo cancellation.

  • Power Supply: DC 12V, 1A for TG100; AC 100-240V for TG200, TG400, TG800, and TG1600.

  • Operating Environment: Operating temperature from 0°C to 40°C and humidity from 10% to 90% non-condensing.
