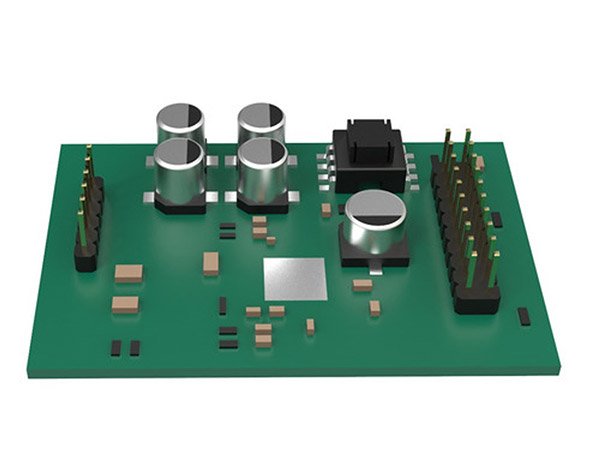

Yeastar S2 Module
An expansion module featuring 2 FXS ports to terminate two analog telephone or fax machines, compatible with Yeastar S-Series VoIP PBX and P-Series PBX systems.
Yeastar S2 module is a module with 2 FXS ports to terminate two analog telephone or fax machines. It is compatible with Yeastar S-Series VoIP PBX and P-Series PBX System.
-
Key Features and Benefits:
-
Analog Extensions: Provides 2 FXS ports to connect analog telephones or fax machines.
-
PBX Compatibility: Works seamlessly with Yeastar S-Series (S412, S20, S50, S100, S300) and P-Series (P550, P560, P570) PBX systems.
-
-
Technical & Physical Specifications:
-
Ports: 2 RJ11 FXS Ports.
-
Ring Frequency & Load: Ring frequency of 25 Hz and ring load of 840 Ohm.
-
Impedance & Current: Loop impedance of 2000 Ohm, loop current of 20 mA, and off-hook current of 10 mA.
-
Voltage Specs: On-hook voltage (idling) of 48V, off-hook voltage of 11V, ring voltage of 85V, and surge voltage of 1.5KV (10/70uS).
-
Line Length & Dialing: Max length supported of 1500M and pulse dial speed of 100-135 ms/10pps.
-
