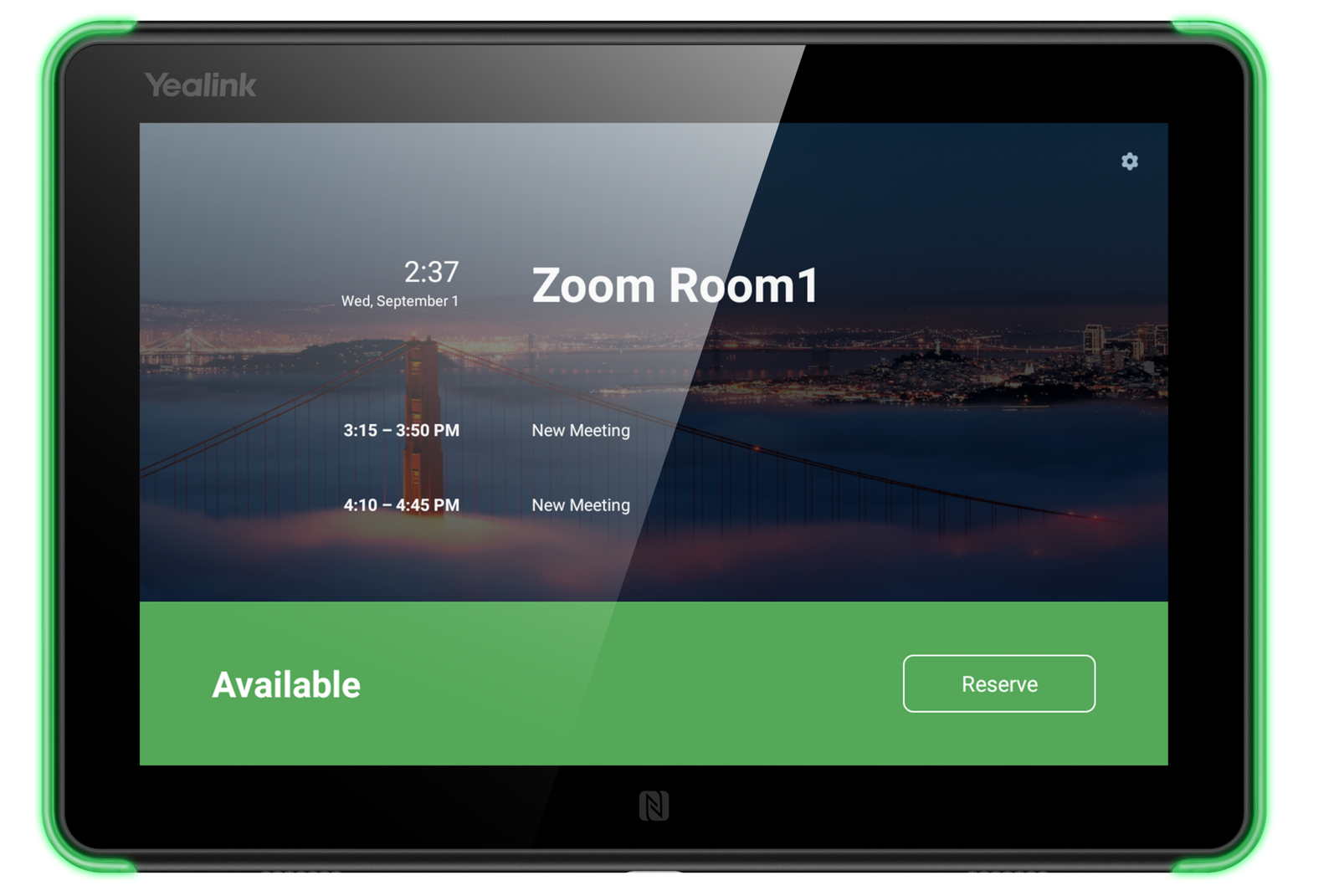

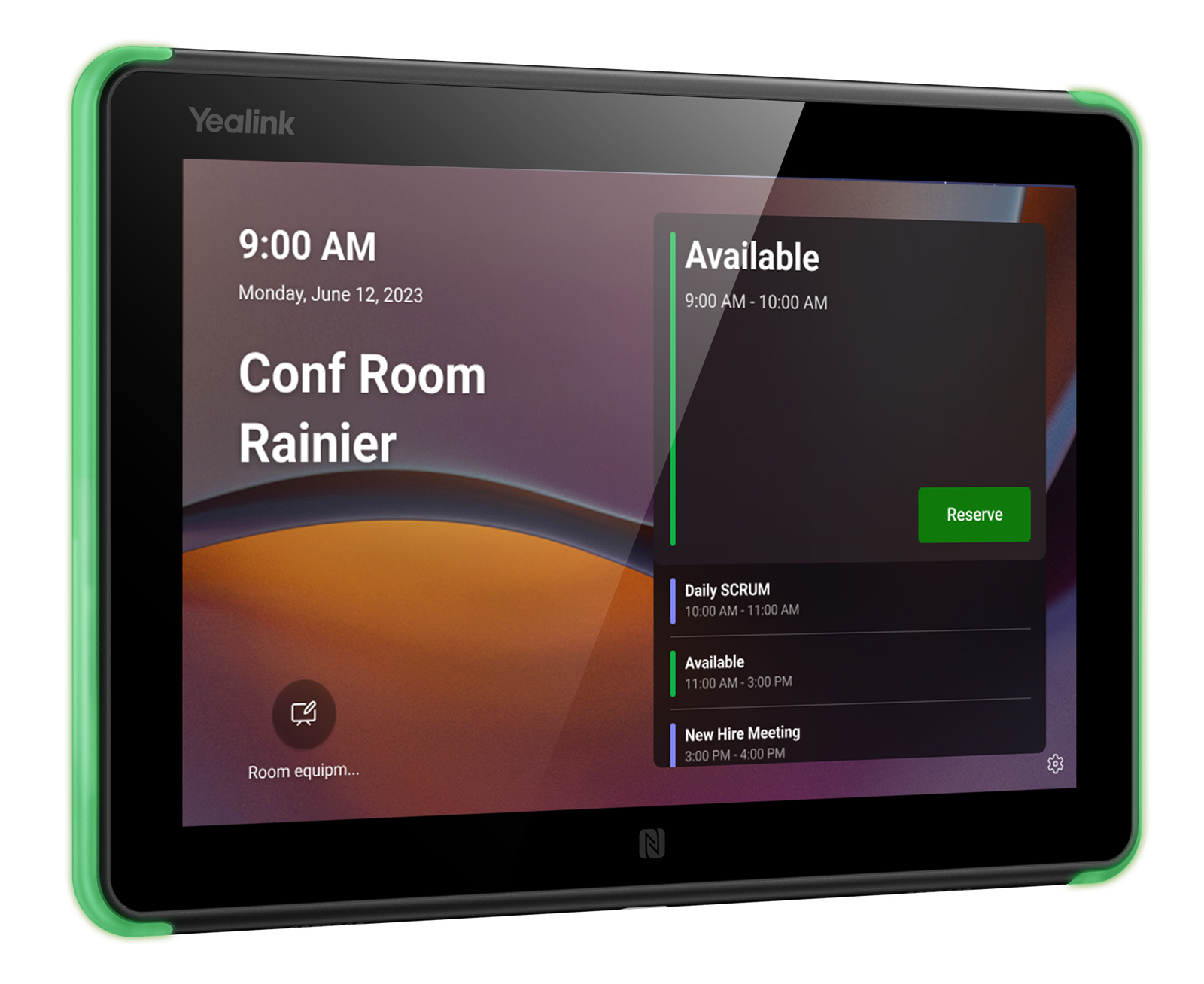

Yealink RoomPanel E2 (All-In-One Meeting Room Scheduling Panel)

The Yealink RoomPanel E2 is designed to meet all modern workspace demands, featuring high-visibility RGB LED bars for all-around visible communication of room status and ambient light and proximity sensors for automatic brightness adjustment and screen wake-up.

• Key Features and Benefits:

  • Interactive Touch Panel: Features an 8-inch multi-point capacitive touch screen with an anti-fingerprint coating to easily book rooms or check in/out.

  • High Visibility LED Bars: Full RGB LED bars provide immediate, all-around visible communication of room status.

  • Smart Sensors: Embedded proximity and ambient light sensors automatically adjust screen brightness and wake up the screen.

  • Flexible Deployment & Mounting: Supports portrait or landscape orientation, flexible mounting options (including 20° tilt mount, flush mount, glass mount, and electrical box surface mount) using brackets and 3M velcro.

  • Advanced Connectivity: Includes 802.11ac Wi-Fi, Bluetooth 5.0 for connecting directly to room sensors, and a built-in 13.56 MHz RFID/NFC reader for enhanced ID authorization security and attendee tracking.

• Technical & Physical Specifications:

  • Operating System: Android 13.

  • Display: 8″ LCD Panel (16:10) with 1280×800 resolution, 1000:1 contrast, and ±80° viewing angles.

  • Audio: 2 x array microphones and 2 x 1-watt speakers.

  • Connectivity & Ports: 1 x Fast Ethernet port (10/100 Mbps) with IEEE 802.1x authentication, Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0, RFID/NFC (13.56 MHz), and 1 x USB-C port.

  • Power Supply: Power over Ethernet (IEEE 802.3af) or 12V Power Adapter.

  • Dimensions & Weight: Display size of 209 x 146 mm (8.23″ x 4.06″) and a weight of 0.53 kg (1.168 lb).

  • Environmental: Operating temperature from 0 to 40°C and operating humidity from 10% to 95% (non-condensing).
