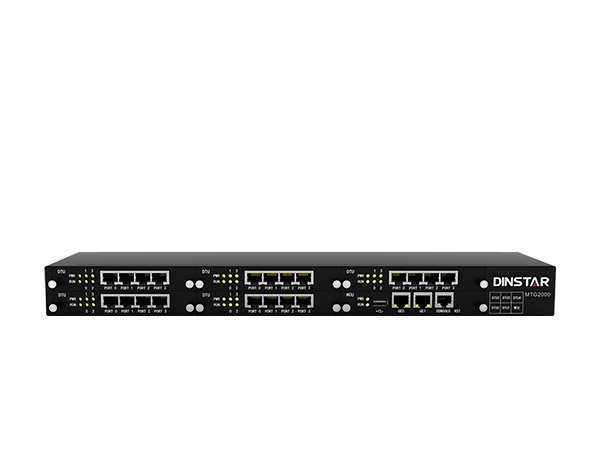

MTG2000 VoIP Trunk Gateway

The MTG2000 is a new-generation intelligent VoIP gateway designed for enterprises, telecom operators, and various industries. Focusing on a concept of maintainable, manageable, and operable design, the MTG2000 features high integration and large capacity, providing carrier-grade VoIP and FoIP services as well as value-added functions like modem and voice recognition. It constructs a flexible, high-efficient, future-oriented communication network for users. It supports a range of signaling protocols, realizing the interconnection between SIP and traditional signals like SS7 and PRI. It supports multiple codec methods, offers signal encryption technology and smart voice recognition technology, and improves the utilizing efficiency of trunking resources while ensuring voice quality. The trunk gateway is ideally fit for various access networks of SMEs, call centers, telecom operators, and large-scale enterprises.

• Key Features and Benefits:

  • High Integration: Features a carrier-grade hardware design with a 1+1 power supply and a high-integrated structure supporting up to 20 E1 ports in a 1U size.

  • Flexible Routing: Supports flexible dialing rules and operations, allowing users to customize dialing rules according to different working environments.

  • Codecs & Compatibility: Supports multiple coding standards (G.711A/U, G.723.1, G.729A/B, and iLBC) and provides high compatibility and interoperability with PBXs from Avaya, NEC, and Alcatel, as well as leading softswitches from Huawei, Cisco, and ZTE.

• Technical & Physical Specifications:

  • Physical Interfaces: 4/8/12/16/20 E1/T1 ports via DTU modules (4 E1/T1 per module, RJ45 impedance 120Ω); Ethernet interfaces via GE1: 10/100/1000 Base-T Adaptive Ethernet and GE2: 10/100/1000 Base-T Adaptive Ethernet; 1x RS232 console port (115200bps).

  • Power Supply & Consumption: 1+1 redundancy power supply supporting 100-240VAC, 50-60Hz; power consumption of 45W.

  • Dimensions & Weight: Dimensions (W/D/H) of 43030044.5mm (1U) and unit weight of 3.8kg.

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% non-condensing.
