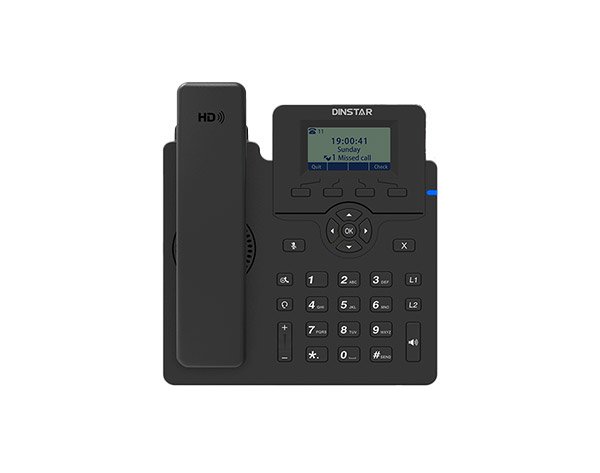

Dinstar C60L & C60LP Enterprise Entry-Level Cost-Effective IP Phone

The C60L and C60LP are cost-effective business IP phones designed for various IP voice phone systems. They integrate a 132×64 pixel graphical LCD and an elegant, intuitive user interface, supporting high-definition voice calls and comprehensive calling functions to meet the needs of users in various industries. Equipped with a full-duplex speaker and microphone system and a Digital Signal Processor (DSP), they ensure crystal-clear audio quality. They are tested to ensure good compatibility with leading IP telephony systems and equipment, supporting Dinstar UC/IPPBX products as well as third-party IPPBXs such as 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, BroadSoft, and FreeSWITCH.

• Key Features and Benefits:

  • Display & Account Capacity: Features a 132×64 pixel graphical LCD, supporting 2 SIP accounts and 2 line keys.

  • Audio & Conferencing: Delivers HD Voice, full-duplex speakerphone, and 5-way conference capability.

  • Connectivity & Support: Includes a 10/100Mbps Ethernet port and supports EHS wireless headsets (Plantronics, Jabra, Sennheiser).

  • Model Differences:

    • C60L: PoE Support (No), Power Adapter (Yes).

    • C60LP: PoE Support (Yes), Power Adapter (Optional).

• Technical & Physical Specifications:

  • Physical Interfaces: 1x RJ45 10/100M Ethernet port, 1x handset port (4P4C, RJ9), 1x headset port (4P4C, RJ9), and wall mountable design.

  • Power & Consumption: Input voltage of 5VDC; power supply via 5Vdc power adapter or PoE (C60LP); typical power consumption of 1.4W.

  • Dimensions & Weight: Dimensions (W x H x D) of 180 x 192 x 36mm (without foot stand); device weight approx. 370g, foot stand approx. 60g.

  • Operating Environment: Operating temperature from 0°C to 40°C and operating humidity from 10% to 95% (non-condensing).
