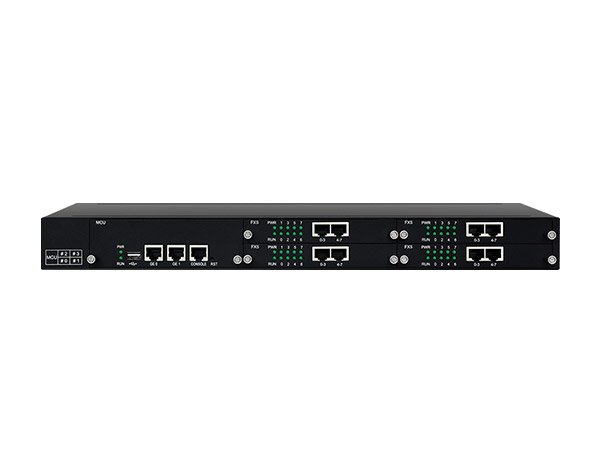

DAG3000-32S/O FXO Analog VoIP Gateway
A multi-functional analog gateway offering seamless connectivity between IP-based telephony networks, legacy telephones (POTS), fax machines, and PBX systems, adopting a modularized hardware design that allows expanding up to 32 FXS/FXO ports via user boards.
The DAG3000-32S/O supports standard SIP protocols and is compatible with leading IMS/NGN platforms and SIP-based IP telephony systems. It is ideally suited for small and medium businesses, call centers, and multi-location environments that need VoIP services through a modular hardware configuration where each board supports up to 8 FXS/FXO ports.
-
Key Features and Benefits:
-
Cost-Effective Modular Design: Cost-effective gateway featuring up to 32 FXS/FXO ports through a modular user board layout (supporting up to 4 user board slots).
-
Fax Support: Fax over IP via T.38 and Pass-Through.
-
Dual Stack Network: Full support for both IPv4 and IPv6.
-
Management & Codecs: Supports TR069 and SNMP management protocols, alongside multiple codecs including G.711A/U, G.723.1, G.729A/B, and others.
-
-
Technical & Physical Specifications:
-
Physical Interfaces: Capacity ranging from 8 to 32 FXS/FXO across 4 user board slots (featuring RJ45 connectors with 4 or 8 FXS/FXO ports per board). MCU Board features 1RS232 (115200bps) and 210/100/1000Mbps RJ45 network interfaces.
-
Power Supply: 100-240VAC, 50-60 Hz; power consumption of 20W (typical).
-
Dimensions & Weight: Dimensions (W/D/H) of 44030044mm and unit weight of 3.8kg.
-
Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
-
