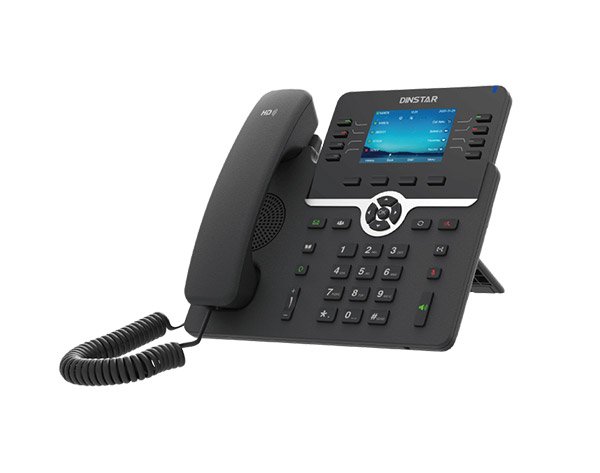

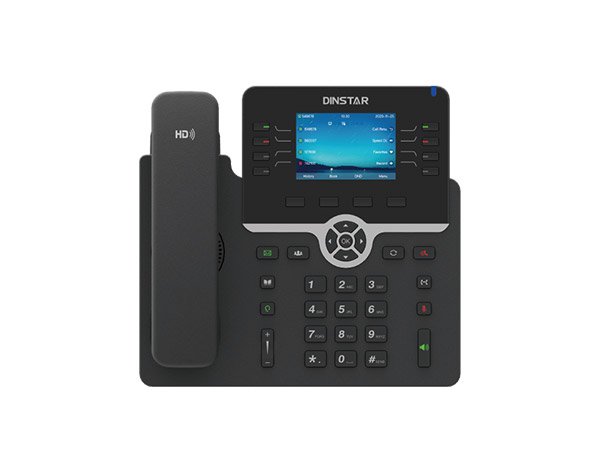

Dinstar C64G & C64GP Smart Business IP Phone

The C64G and C64GP are smart business IP phones equipped with a 3.5″ high-resolution color TFT display with backlight that elevates visual presentation. The freely programmable multi-color function keys offer a high degree of usability for speed dialing, busy lamp fields, and other one-touch functions. Powered by a full-duplex speakerphone and microphone system alongside a Digital Signal Processor (DSP), they deliver crystal-clear HD audio quality. They are fully compatible with Dinstar UC/IPPBX products as well as third-party IP PBXs such as 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, BroadSoft, and FreeSWITCH.

• Key Features and Benefits:

  • Display & Capacity: Features a 3.5″ 480 x 320 pixel color TFT LCD with backlight, supporting up to 16 SIP accounts and 40 line keys.

  • Audio & Conferencing: Delivers HD Voice, full-duplex speakerphone, and 6-way conference capability.

  • Connectivity & Expansion: Equipped with a USB 2.0 port, dual-port Gigabit Ethernet (10/100/1000Mbps), and support for EHS wireless headsets (Plantronics, Jabra, Sennheiser).

  • Model Differences:

    • C64G: PoE Support (No), Power Adapter (Included).

    • C64GP: PoE Support (Yes, IEEE 802.3af), Power Adapter (Optional).

• Technical & Physical Specifications:

  • Physical Interfaces: 2x RJ45 10/100/1000M Ethernet ports, 1x USB 2.0 port, 1x handset port (4P4C, RJ9), 1x headset port (4P4C, RJ9), 1x extended interface (6P6C, RJ12), and wall-mountable design with a stand offering 2 adjustable angles (40° and 45°).

  • Power & Consumption: Input voltage of 5VDC; power supply via 5Vdc power adapter or PoE (C64GP); typical power consumption of 2.4W.

  • Dimensions & Weight: Dimensions (W x H x D) of 210 x 210 x 42.5mm (without foot stand); device weight approx. 590g, foot stand approx. 60g.

  • Operating Environment: Operating temperature from 0°C to 40°C and operating humidity from 10% to 95% (non-condensing).
