DAG1000 FXO Analog VoIP Gateway (DAG1000-2O / DAG1000-4O / DAG1000-8O)

The DAG1000 FXO series is ideally suited for small and medium businesses, call centers, and multi-location environments that require VoIP services. It supports the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP telephony systems.

• Key Features and Benefits:

  • Flexible FXO Configurations: Cost-effective gateway models available with 2, 4, or 8 FXO ports (RJ-11).

  • Fax over IP: Supports T.38 and Pass-Through capabilities.

  • Advanced Routing & Management: Features flexible call routing, number manipulation, TR069, and SNMP management.

  • Voice Quality: Equipped with echo cancellation (G.168 up to 128ms), silence suppression, VAD, CNG, and multiple audio codecs including G.711A/U, G.723.1, G.729A/B, and G.726.

• Technical & Physical Specifications:

  • Physical Interfaces:

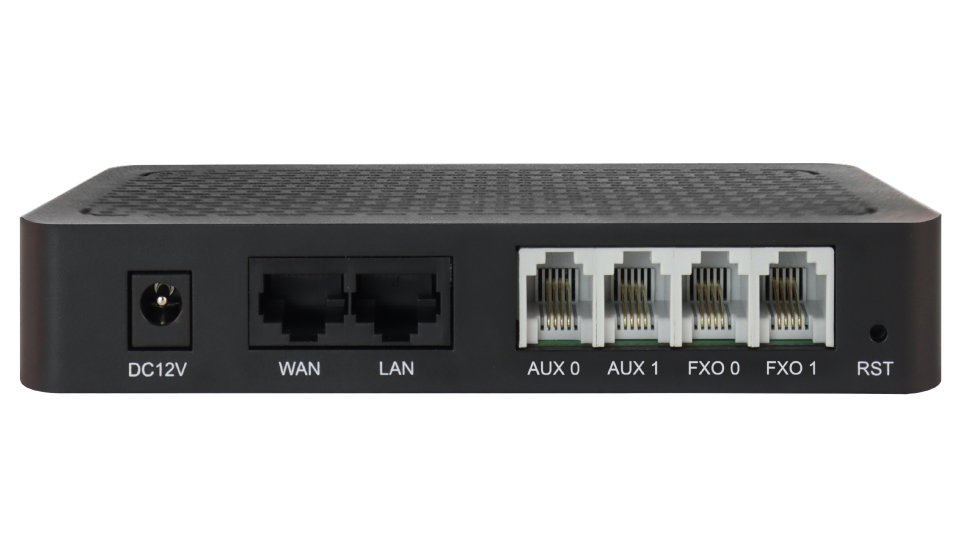

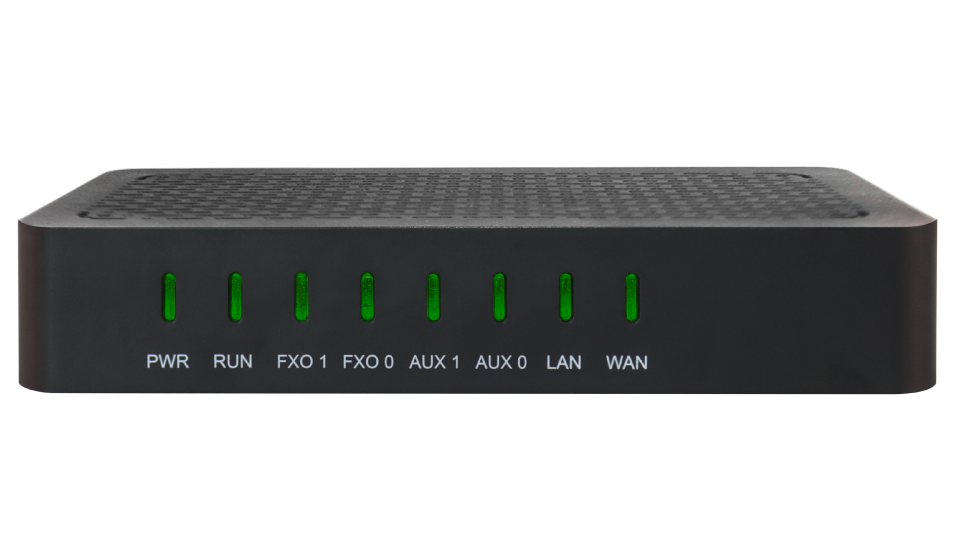

    • DAG1000-2O: 2 FXO ports, 1 x WAN, 1 x LAN (10/100Mbps, RJ-45).

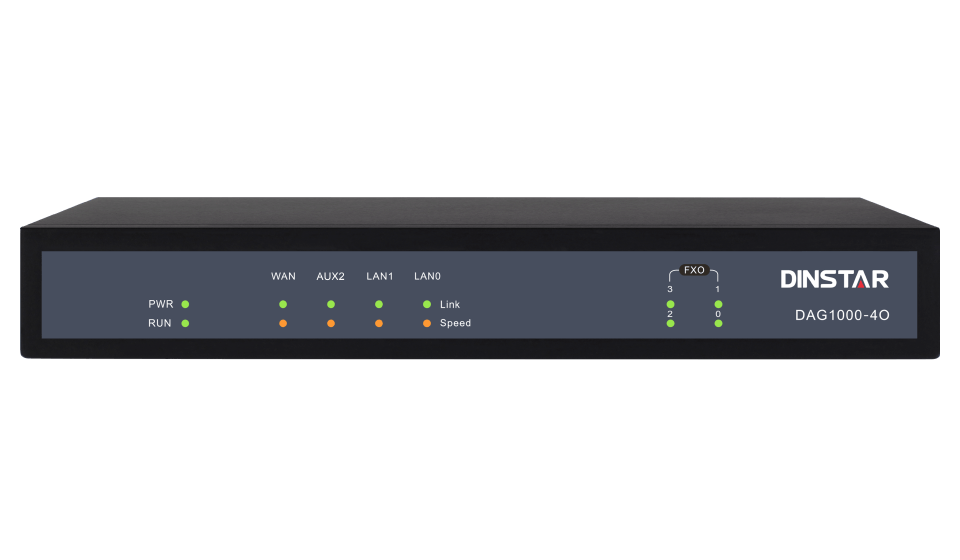

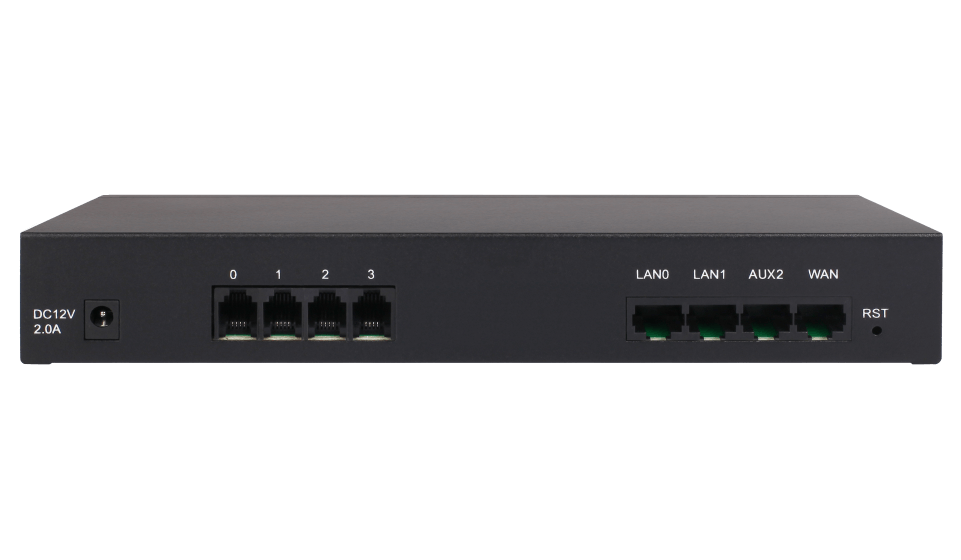

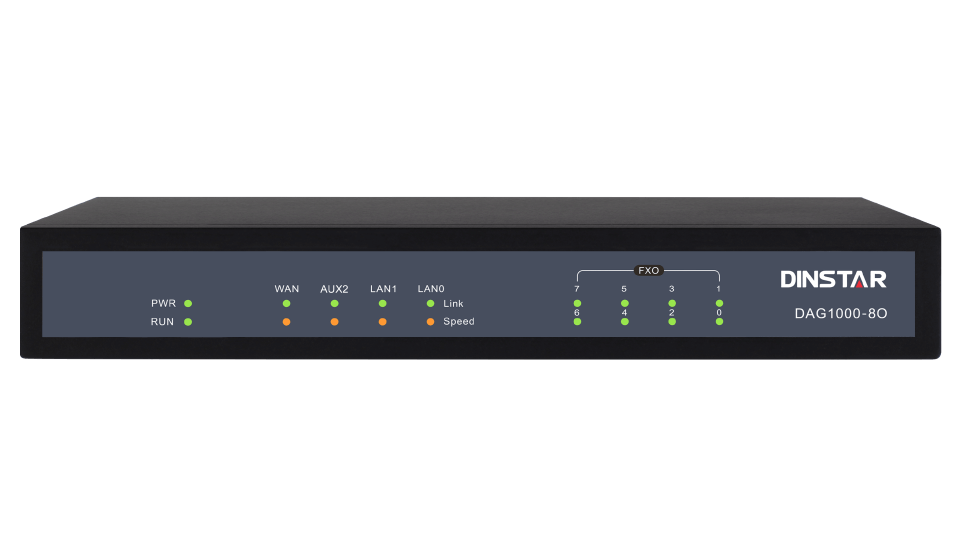

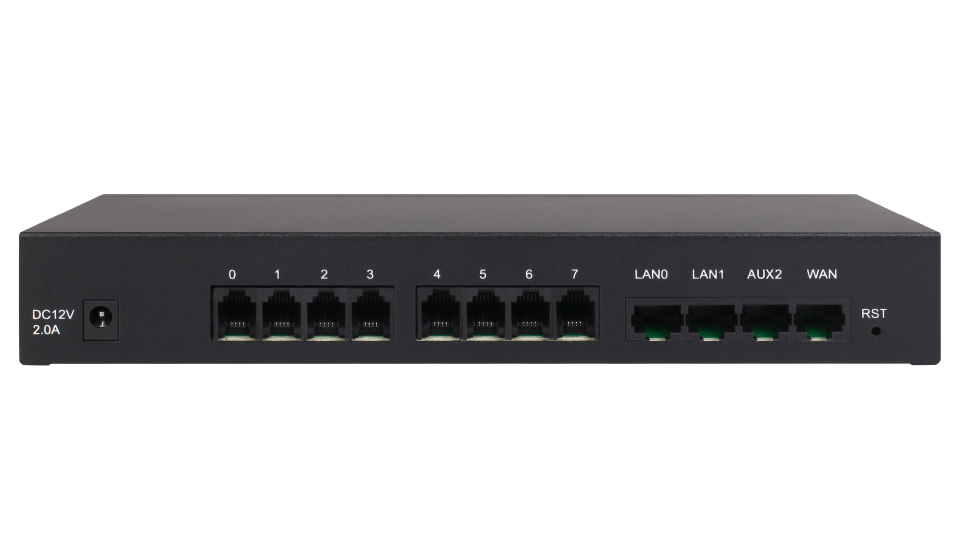

    • DAG1000-4O / DAG1000-8O: 4 or 8 FXO ports, 1 x WAN, 3 x LAN (10/100Mbps, RJ-45).

  • Power Supply & Consumption: Power supply of 100-240VAC, 50-60 Hz @ External Adapter DC12V; power consumption varies by model (DAG1000-2O: 5W, DAG1000-4O: 12W, DAG1000-8O: 20W).

  • Dimensions & Weight:

    • DAG1000-2O: 195 × 135 × 35mm, 0.6kg.

    • DAG1000-4O: 242 × 152 × 40mm, 1kg.

    • DAG1000-8O: 242 × 152 × 40mm, 1kg.

  • Operating Environment: Operating temperature from 0°C to 45°C, storage temperature from -20°C to 80°C, and humidity from 10% to 90% (non-condensing).
